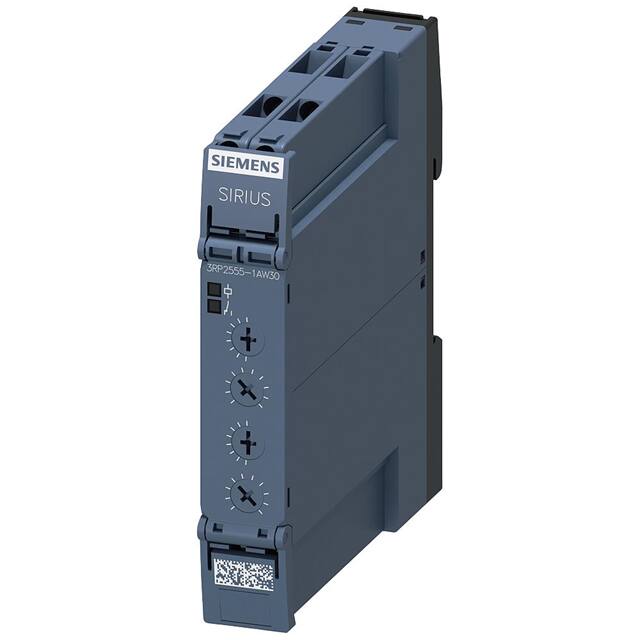

3RP25551AW30

Manufacturer :

Siemens

Product Category :

Time Delay Relays

Depth :

90mm

Termination Style :

Screw Terminal

Durability :

1000 0000

Min. temperature :

-25°C

Manufacturer :

Siemens

Voltage type for actuating :

AC/DC

Type :

3RP2555-1AW30

RoHS-compliant :

yes

Function :

Asymmetric Flasher

Width :

17.5

Voltage - Supply :

12 ~ 240VAC/DC

Type of electric connection :

Screw connection

Maximum Operating Temperature :

+60°C

Content :

1pc(s)

Electrical lifespan :

100000

Mode of Operation :

Asymmetrical

Max. operating voltage :

240V

Rated control supply voltage at AC 50 Hz :

12 - 240

Relay Type :

Mechanical Relay

Height :

100mm

Contact Material :

Silver Tin Oxide

Product Status :

Active

Max. temperature :

+60°C

Weight :

0.14

Rated control supply voltage at AC 60 Hz :

12 - 240

Mounting Type :

DIN Rail

Rated control supply voltage at DC :

12 - 240

Series :

3RP25

Length :

17.5mm

Number of Contacts :

1

Min. operating voltage :

12V

Timing Initiate Method :

Input Voltage

Contact Rating @ Voltage :

3A @ 250VAC

Power Supply :

External

Timing Adjustment Method :

Screwdriver Slot

Circuit :

SPDT (1 Form C)

Package :

Box

Switch Configuration :

SPDT

Base Product Number :

3RP2555

Dim :

(W x H x D) 17.5 x 100 x 90 mm

Reach Compliance Code :

Unknown

Delay Time :

0.05 Sec ~ 100 Hrs

Terminal Type :

Screw

Contact Configuration :

SPDT

Minimum Operating Temperature :

-25°C

Supply Voltage :

12 → 240V ac/dc
