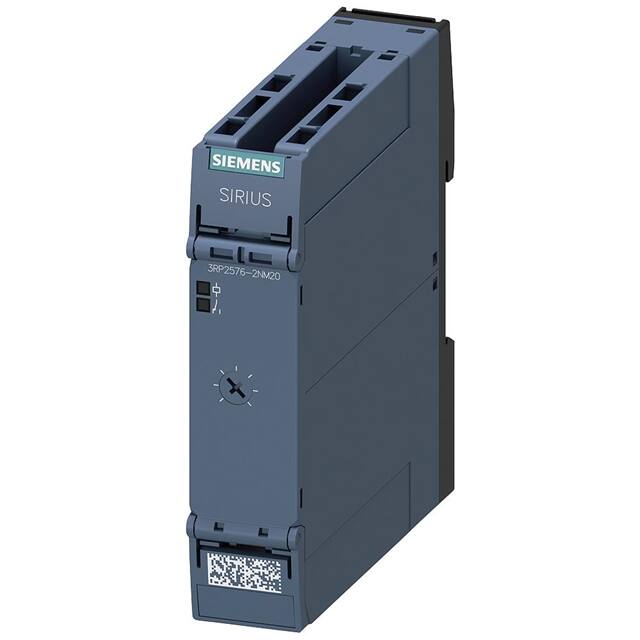

3RP25762NM20

Manufacturer :

Siemens

Product Category :

Time Delay Relays

Min. operating voltage :

200V

Rated control supply voltage at DC :

0 - 0

Reach Compliance Code :

Unknown

Contact Rating @ Voltage :

3A @ 250VAC

Type of electric connection :

Spring clamp connection

Switch Configuration :

DPST

Length :

22.5mm

Number of Contacts :

2

Supply Voltage :

200 → 240 V ac, 380 → 440V ac

Width :

22.5

Max. operating voltage :

240V

Mode of Operation :

Star Delta

Type :

3RP2576-2NM20

Terminal Type :

Push In

Rated control supply voltage at AC 60 Hz :

200 - 240

Base Product Number :

3RP2576

Function :

Star Delta Controller

Max. temperature :

+60°C

Relay Type :

Mechanical Relay

Product Status :

Active

Timing Adjustment Method :

Screwdriver Slot

Power Supply :

External

RoHS-compliant :

yes

Durability :

1000 0000

Maximum Operating Temperature :

+60°C

Mounting Type :

DIN Rail

Termination Style :

Spring Terminal

Package :

Box

Manufacturer :

Siemens

Rated control supply voltage at AC 50 Hz :

200 - 240

Contact Material :

Silver Tin Oxide

Electrical lifespan :

100000

Series :

SIRIUS

Circuit :

SPST-NO (1 Form A)

Content :

1pc(s)

Dim :

(W x H x D) 22.5 x 100 x 90 mm

Voltage - Supply :

200 ~ 240VAC, 380 ~ 440VAC

Voltage type for actuating :

AC

Height :

100mm

Minimum Operating Temperature :

-25°C

Contact Configuration :

DPST

Min. temperature :

-25°C

Depth :

90mm

Delay Time :

3 Sec ~ 60 Sec

Timing Initiate Method :

Input Voltage
