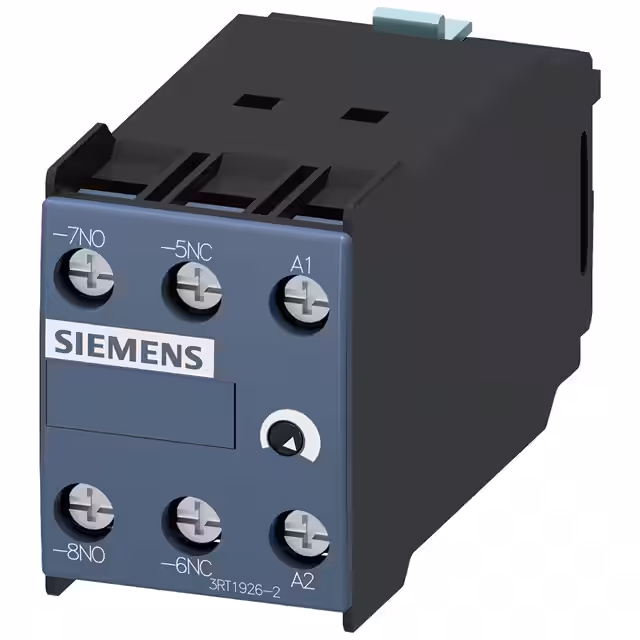

3RT1926-2FL31

Manufacturer :

Siemens

Product Category :

Time Delay Relays

Number of contacts as change-over contact :

0

Mounting Style :

DIN

Type :

3RT1926-2FL31

Timing Initiate Method :

Input Voltage

Dim :

(W x H x D) 33 x 46 x 73 mm

Range :

SIRIUS

Height :

46mm

Number of Contacts :

2

Function :

Off-Delay

Durability :

1000 0000

Mounting Type :

DIN Rail

Termination Style :

Screw Terminal

Delay Time :

5 Sec ~ 100 Sec

Min. temperature :

-25°C

Timing Adjustment Method :

Screwdriver Slot

Depth :

73mm

Base Product Number :

3RT1926

Contact Current Rating :

3 A

Contact Rating @ Voltage :

3A @ 250VAC

Number of contacts as normally open contact :

0

Max. operating voltage :

240V

Content :

1pc(s)

Series :

3RT19262

Max. temperature :

+60°C

Relay Type :

Solid State Relay

Operating principle :

Electronic

Voltage - Supply :

200 ~ 240VAC

Circuit :

DPST-NO/NC (1 Form A and B)

Number of contacts as normally closed contact :

0

Min. operating voltage :

200V

Width :

33mm

Electrical lifespan :

100000

Product Status :

Active
