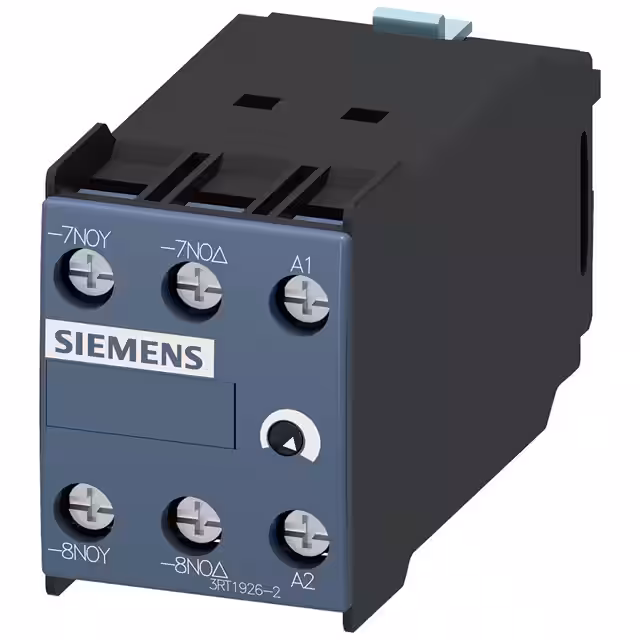

3RT1926-2GC51

Manufacturer :

Siemens

Product Category :

Time Delay Relays

Durability :

1000 0000

Electrical lifespan :

100000

Timing Initiate Method :

Input Voltage

Number of contacts as normally closed contact :

0

Series :

SIRIUS

Function :

Star Delta Controller

Type :

3RT1926-2GC51

Base Product Number :

3RT1926

Delay Time :

1.5 Sec ~ 30 Sec

Termination Style :

Screw Terminal

Contact Current Rating :

3 A

Contact Rating @ Voltage :

3A @ 250VAC

Height :

46mm

Product Status :

Active

Width :

33mm

Depth :

73mm

Relay Type :

Solid State Relay

Mounting Type :

DIN Rail

Range :

SIRIUS

Max. temperature :

+60°C

Operating principle :

Electronic

Voltage - Supply :

100 ~ 127VAC

Number of contacts as normally open contact :

0

Content :

1pc(s)

Number of contacts as change-over contact :

0

Min. operating voltage :

100V

Dim :

(W x H x D) 33 x 46 x 73 mm

Circuit :

DPST-NO (2 Form A)

Timing Adjustment Method :

Screwdriver Slot

Number of Contacts :

2

Min. temperature :

-25°C

Mounting Style :

DIN

Max. operating voltage :

127V

Package :

Box
