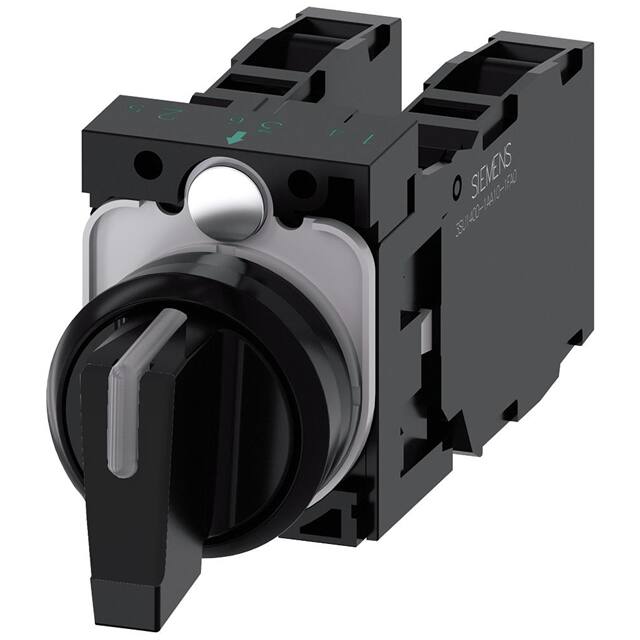

3SU11002BL101NA0

Manufacturer :

Siemens

Product Category :

Depth Behind Flange :

71.70mm

Degree of protection (IP) :

IP67/IP69K

Termination Style :

Screw Terminal

Panel Cutout Dimensions :

Circular - 22.30mm Dia

IP Rating :

IP66, IP67, IP69K

Degree of protection (NEMA) :

Other

Current Rating (Amps) :

10A (AC/DC)

Series :

3SU1

Number of contacts as change-over contact :

0

Switch Function :

On-Off, Off-On

Angle of Throw :

45°

Number of contacts as normally open contact :

2

Circuit :

4PST-2NO/2NC

Operating Temperature :

-25°C ~ 70°C

Type of electric connection :

Screw connection

Illumination Type, Color :

-

Electrical Life :

10,000,000 Cycles

Type :

Standard

Voltage Rating - AC :

500 V

Number of Positions :

3

Features :

-

Mounting Type :

Panel Mount

Illumination Voltage (Nominal) :

-

Colour front ring :

Black

Base Product Number :

3SU1100

Voltage Rating - DC :

500 V

With light source :

No

Illumination :

Non-Illuminated

Approval Agency :

CCC, CE, CSA, EAC, UL

Number of contacts as normally closed contact :

2

With front ring :

yes

Type of control element :

TOGGLE

Terminal Type :

Screw

Material front ring :

Plastic

Ingress Protection :

IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof

Mechanical Life :

1,000,000 Cycles

Product Status :

Active

Package :

Box
