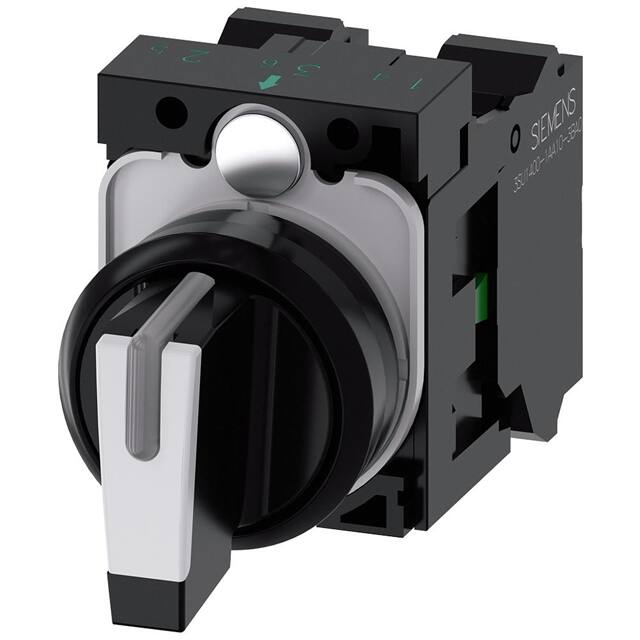

3SU11002BL603NA0

Manufacturer :

Siemens

Product Category :

Contact Configuration :

SPDT

Illumination Type, Color :

-

Illumination Voltage (Nominal) :

-

Number of Positions :

3

Degree of protection (NEMA) :

Other

RoHS :

Compliant

Type of control element :

TOGGLE

Approval Agency :

CCC, CE, CSA, EAC, UL

Colour front ring :

Black

Operating Temperature :

-25°C ~ 70°C

Termination Style :

Spring Terminal

Electrical Life :

10,000,000 Cycles

Type :

Standard

Panel Cutout Dimensions :

Circular - 22.30mm Dia

Depth Behind Flange :

49.70mm

Mechanical Life :

1,000,000 Cycles

Angle of Throw :

45°

Degree of protection (IP) :

IP67/IP69K

Illumination :

Non-Illuminated

Number of contacts as change-over contact :

0

Features :

-

Base Product Number :

3SU1100

Type of electric connection :

Spring clamp connection

Number of contacts as normally closed contact :

0

Actuator Type :

Short Black Handle

With light source :

No

Circuit :

DPST-NO

Voltage Rating - AC :

500 V

Material front ring :

Plastic

Manufacturer :

Siemens

Number of Pins :

3

Switch Type :

ROTARY SWITCH

Current Rating (Amps) :

10A (AC/DC)

Series :

SIRIUS ACT

Switch Function :

Off-On

With front ring :

yes

Ingress Protection :

IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof

Voltage Rating - DC :

500 V

Number of contacts as normally open contact :

2

Product Status :

Active

Mounting Type :

Panel Mount

Reach Compliance Code :

Unknown
