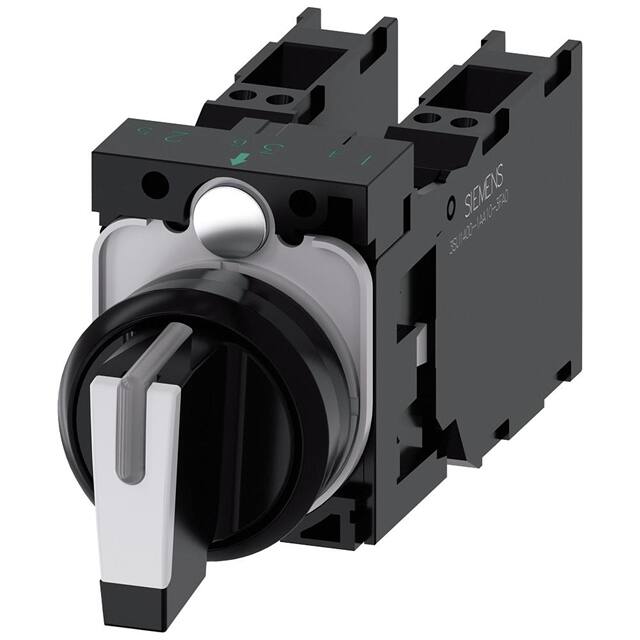

3SU11002BM603LA0

Manufacturer :

Siemens

Product Category :

Circuit :

4PST-2NO/2NC

Electrical Life :

10,000,000 Cycles

Termination Style :

Spring Terminal

Current Rating (Amps) :

10A (AC/DC)

IP Rating :

IP66, IP67, IP69K

Number of contacts as change-over contact :

0

Angle of Throw :

45°

Material front ring :

Plastic

Approval Agency :

CCC, CE, CSA, EAC, UL

Product Status :

Active

Illumination :

Non-Illuminated

Degree of protection (IP) :

IP67/IP69K

Colour front ring :

Black

Type of electric connection :

Spring clamp connection

Base Product Number :

3SU1100

Voltage Rating - AC :

500 V

Type of control element :

TOGGLE

Illumination Voltage (Nominal) :

-

Degree of protection (NEMA) :

Other

Switch Function :

On-Mom, Off-Mom

Operating Temperature :

-25°C ~ 70°C

Panel Cutout Dimensions :

Circular - 22.30mm Dia

Number of contacts as normally closed contact :

2

Series :

SIRIUS ACT

Ingress Protection :

IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof

Mounting Type :

Panel Mount

Type :

Standard

Illumination Type, Color :

-

Mechanical Life :

1,000,000 Cycles

Features :

-

Depth Behind Flange :

71.70mm

Number of contacts as normally open contact :

2

Number of Positions :

3

With front ring :

yes

With light source :

No

Voltage Rating - DC :

500 V
