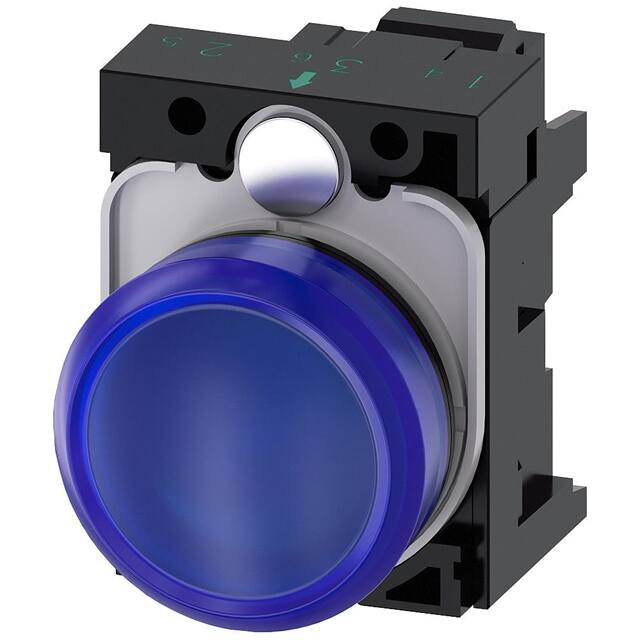

3SU11026AA503AA0

Manufacturer :

Siemens

Product Category :

Type of lamp socket :

Other

Colour lens :

Blue

Voltage Rating :

24V AC/DC

Voltage type :

AC/DC

Series :

SIRIUS ACT

Ratings :

AC/DC

Termination Style :

Spring Terminal

Number of indicator lights :

1

Construction type lens :

Round

Lens Size :

22.00mm Dia

Type of lens :

Flat

Viewing Angle :

-

Width :

30mm

Colour front ring :

Other

Type :

3SU1102-6AA50-3AA0

Max. temperature :

+70°C

Weight :

43g

Panel Cutout Shape :

Round

Panel Cutout Dimensions :

0.88 (22.30mm)

Lens Style :

Round with Flat Top

Content :

1pc(s)

Energy efficiency rating :

n.rel.

RoHS-compliant :

yes

Rated operating voltage Ue :

24 - 24

Wavelength - Peak :

-

Current :

-

Height :

40mm

Product Status :

Active

Voltage :

24V

Dim :

(W x H) 30 mm x 40 mm

Ingress Protection :

IP20, IP66, IP67, IP69, IP69K, NEMA 1, 2, 3, 3R, 4, 4X, 12, 13

With front ring :

No

With light source :

yes

Body Material :

Plastic

Lamp Color :

Blue

Degree of protection (NEMA) :

Other

Degree of protection (IP) :

IP67/IP69K

Min. temperature :

-25°C

Features :

-

Millicandela Rating :

280 ~ 710mcd

Lens Color :

-

Material front ring :

Other

Type of electric connection :

Other

Mounting Type :

Panel Mount

Lamp Type :

LED

Lens Transparency :

-
