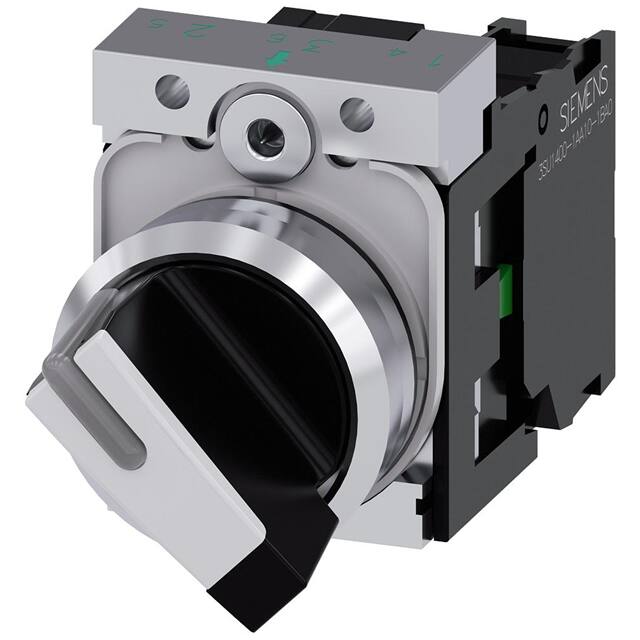

3SU11502BF601BA0

Manufacturer :

Siemens

Product Category :

Depth Behind Flange :

49.70mm

Voltage Rating - DC :

500 V

Number of contacts as change-over contact :

0

Features :

-

Bulb type :

LED (monochrome)

Illumination Voltage (Nominal) :

-

Shape :

Round

Ingress Protection :

IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof

Min. temperature :

-25°C

Contact Configuration :

SPST

IP Rating :

IP20

Current Rating (Amps) :

10A (AC/DC)

Number of Positions :

2

Switch Type :

ROTARY SWITCH

Termination Style :

Screw Terminal

Number of contacts as normally closed contact :

0

Connection :

Screws

Switch position :

1 x Off/On

Content :

1pc(s)

Operating Temperature :

-25°C ~ 70°C

Illumination :

Non-Illuminated

Functions :

Latch

Terminal Type :

Screw

Number of contacts as normally open contact :

1

Mechanical Life :

100,000 Cycles

Type :

3SU1150-2BF60-1BA0

Approval Agency :

CCC, CE, CSA, EAC, UL

Manufacturer :

Siemens

Electrical Life :

10,000,000 Cycles

Base Product Number :

3SU1150

Package :

Bulk

Max. temperature :

+70°C

Illumination Type, Color :

-

Angle of Throw :

90°

Switching angle :

1 x 90 °

Product Status :

Active

RoHS-compliant :

yes

Circuit :

SPST-NO

Switch Function :

Off-On

Lighting type :

Spot lighting

Switch/button features :

Front ring (steel),Glossy

Print motif :

NONE

Mounting Type :

Panel Mount

Recess diameter :

22mm

Voltage Rating - AC :

500 V

Reach Compliance Code :

Unknown

Panel Cutout Dimensions :

Circular - 22.30mm Dia

Series :

SIRIUS ACT
