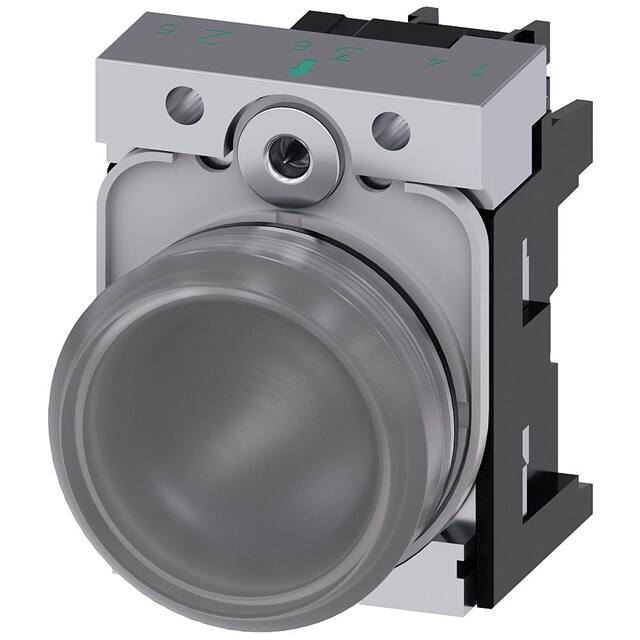

3SU11536AA701AA0

Manufacturer :

Siemens

Product Category :

Voltage type :

AC

Mounting Type :

Panel Mount

Ingress Protection :

IP20, IP66, IP67, IP69, IP69K, NEMA 1, 2, 3, 3R, 4, 4X, 12, 13

Lens Size :

22.00mm Dia

With front ring :

No

Panel Cutout Dimensions :

0.88 (22.30mm)

Energy efficiency rating :

n.rel.

Content :

1pc(s)

Width :

30mm

Dim :

(W x H) 30 mm x 40 mm

Degree of protection (NEMA) :

Other

RoHS :

Compliant

Colour front ring :

Other

Rated operating voltage Ue :

110 - 110

Type of lens :

Flat

Panel Cutout Shape :

Round

Construction type lens :

Round

Min. temperature :

-25°C

Termination Style :

Screw Terminal

Body Material :

Metal

Product Status :

Active

Type of electric connection :

Screw connection

Lens Transparency :

Clear

Type of lamp socket :

Other

Features :

-

Millicandela Rating :

900 ~ 1400mcd

Weight :

82g

Current :

-

Voltage Rating :

110V AC

Package :

Box

Degree of protection (IP) :

IP67/IP69K

Lamp Type :

LED

Lens Style :

Round with Flat Top

Lens Color :

-

Series :

SIRIUS ACT

Material front ring :

Other

Height :

40mm

Colour lens :

Clear

Viewing Angle :

-

Max. temperature :

+70°C

Ratings :

AC

With light source :

yes

Wavelength - Peak :

-

Type :

3SU1153-6AA70-1AA0

Voltage :

110V

Lamp Color :

White

Number of indicator lights :

1
