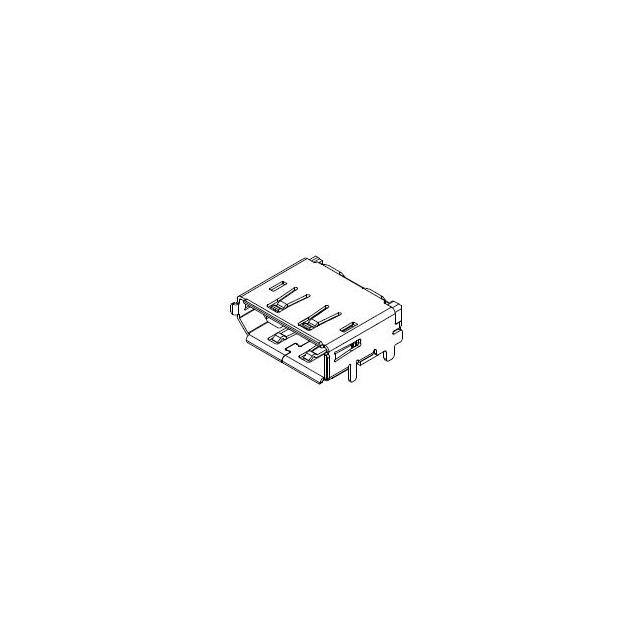

47272-0008

Manufacturer :

Molex

Product Category :

Unclassified

Product Length (mm) :

17.79(mm)

Mounting Style :

Surface Mount

Operating Temperature Min Deg. C :

-20C

Body Orientation :

RIGHT ANGLE

Operating Temp Range :

-20C to 85C

Lifecycle Status :

Obsolete (Last Updated: 2 years ago)

RoHS :

Non-Compliant

Contact Plating :

Gold Over Nickel

Country of Origin :

CN

Halogen Free :

Low Halogen

Product Height (mm) :

6.65(mm)

Number of Circuits :

20

Housing Material :

Thermoplastic

Number of Terminals :

20

Manufacturer Lifecycle Status :

Obsolete (Last Updated: 2 years ago)

Termination Method :

Solder

Packaging :

Tape and Reel

Package :

Box

Orientation :

RIGHT ANGLE

Product Status :

Active

Contact Material :

COPPER ALLOY

Series :

*

Product Diameter (mm) :

Not Required(mm)

Product Depth (mm) :

14.89(mm)

Current Rating (Max) :

0.5/Contact(A)

Number of Rows :

2

Current Rating :

500 mA

Gender :

RCP

Operating Temperature Max Deg. C :

85C

Number of Ports :

1(Port)

Pitch (mm) :

0.5(mm)

Number of Contacts :

20(POS)

Voltage Rating Max :

40VAC

Type :

Display Port
