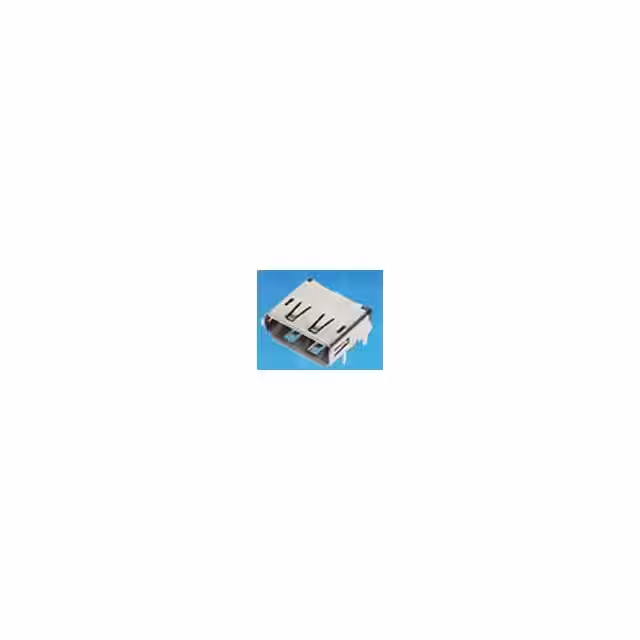

47272-0023

Manufacturer :

Molex

Product Category :

USB, DVI, HDMI Connector Assemblies

Packaging :

Tape and Reel

Termination Type :

Surface Mount

Body/Shell Style :

Receptacle

Contact Gender :

Male

Number of Ports :

1(Port)

Series :

*

Product Depth (mm) :

14.89(mm)

Termination Method :

Solder

Housing Material :

Thermoplastic

Product Status :

Active

Product Height (mm) :

6.65(mm)

Contact Material :

Brass

Contact Resistance :

30 mΩ

Operating Temp Range :

-20C to 85C

Mounting Style :

Surface Mount

Operating Temperature Max Deg. C :

85C

Plating Thickness :

30u inch

Current Rating (Max) :

0.5/Contact(A)

Manufacturer :

Molex

Body Depth :

0.567 inch

PCB Contact Pattern :

RECTANGULAR

Reference Standard :

UL

Body Breadth :

0.243 inch

Number of Terminals :

20

Mounting Option 2 :

Mounting Flange

Dielectric Withstanding Voltage :

300VAC V

Voltage Rating Max :

40VAC

Durability :

10000 Cycles

Number Of PCB Rows :

1

Package :

Box

Type :

Display Port

Board Mounting Option :

SOLDER HOLDING POSTS

ECCN Code :

EAR99

Mounting Type :

BOARD

Mounting Option 1 :

DETENT

Reach Compliance Code :

Unknown

Product Length (mm) :

17.79(mm)

Number of Contacts :

20(POS)

Connector Type :

USB Connector

Shell Finish :

Nickel

Gender :

RCP

Contact Plating :

Gold Over Nickel

Operating Temperature Min Deg. C :

-20C

Shell Material :

P-CUSN

Total Number of Contacts :

20

Insulation Resistance :

10000000 Ω

Rated Current (Signal) :

0.5 A

Terminal Pitch :

0.508 mm

Subcategory :

Telecom and Datacom Connectors

HTS Code :

8536.69.40.30

Body Orientation :

RIGHT ANGLE

Polarization Key :

POLARIZED HOUSING

Reliability :

COMMERCIAL

Pitch (mm) :

0.5(mm)
