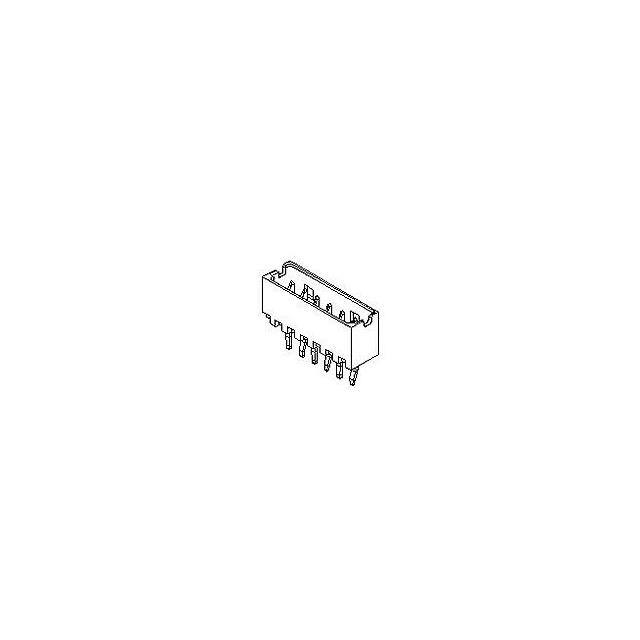

53014-0910

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Contact Style :

SQ PIN-SKT

Option :

GENERAL PURPOSE

Body Orientation :

Straight

Manufacturer :

Molex

Pitch (mm) :

2(mm)

HTS Code :

8536.69.40.40

Contact Pattern :

RECTANGULAR

Housing Material :

Nylon 6/6

UL Flammability Code :

94V-0

Mixed Contacts :

No

Contact Material :

Phosphor Bronze

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Pitch :

2.0000 mm

Product Depth (mm) :

4.35(mm)

Product Height (mm) :

5.85(mm)

Product Length (mm) :

20(mm)

Total Number of Contacts :

9

IEC Conformance :

No

Body/Shell Style :

Receptacle

MIL Conformance :

No

ECCN Code :

EAR99

Reference Standard :

UL, CSA

Reach Compliance Code :

Compliant

Dielectric Withstanding Voltage :

500VAC V

Insulation Resistance :

1000000000 Ω

Operating Temperature :

-20 to 85 °C

Series :

*

Pbfree Code :

yes

Operating Temp Range :

-20C to 85C

Mounting Type :

BOARD

Package :

Box

Contact Resistance :

20 mΩ

Additional Feature :

NONE

Type :

Shrouded Header

Body Depth :

0.23 inch

Mating Contact Pitch :

0.079 inch

Gender :

Header

Number of Contact Rows :

1

Base/Housing Material :

Nylon 66

Connector Type :

BOARD CONNECTOR

Filter Feature :

No

Body Breadth :

0.171 inch

Subcategory :

Headers and Edge Type Connectors

Termination Type :

Solder

Current Rating (Max) :

2/Contact(A)

Mounting Option 1 :

LOCKING

Number of Contacts :

9(POS)

Number Of PCB Rows :

1

Contact Gender :

Male

DIN Conformance :

No

Reliability :

COMMERCIAL

Terminal Length :

0.138 inch

Termination Method :

Solder

PCB Contact Pattern :

RECTANGULAR

Product Status :

Active

Mounting Style :

Through Hole

Housing Color :

Natural

Rated Current (Signal) :

2 A

Voltage Rating Max :

125V

Terminal Pitch :

2 mm

Packaging :

Bag

Contact Resistance Max :

20(mohm)

Durability :

30 Cycles

Contact Plating :

Tin

Polarization Key :

POLARIZED HOUSING

Contact Finish Termination :

Tin (Sn)

Product Length :

20 mm

JESD-609 Code :

e3

Mounting :

Through Hole
