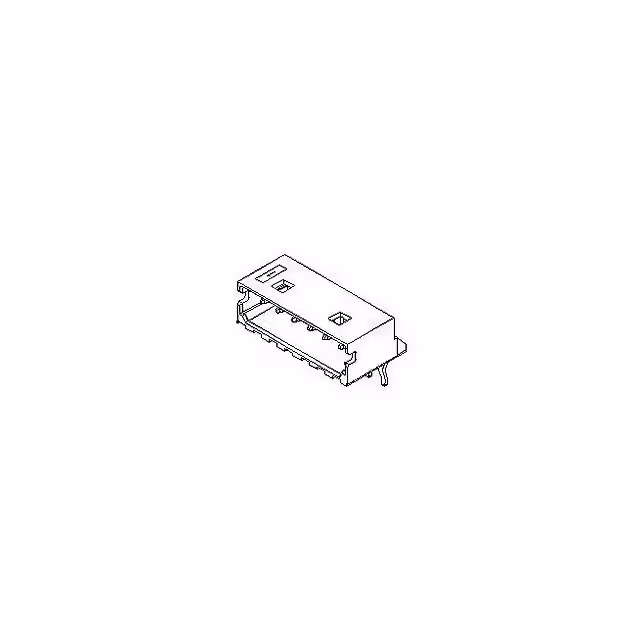

53015-1010

Manufacturer :

Molex

Product Category :

Headers, Male Pins

MIL Conformance :

No

Product Length :

22 mm

Contact Pattern :

RECTANGULAR

Product Height (mm) :

4.65(mm)

Pitch :

2.0000 mm

Number Of PCB Rows :

1

Mounting Type :

BOARD

Pitch (mm) :

2(mm)

Reliability :

COMMERCIAL

Row Spacing :

-

Contact Finish Termination :

Tin (Sn)

Product :

Headers

Product Depth (mm) :

7.6(mm)

Base/Housing Material :

Nylon 66

Number of Contacts :

10(POS)

Housing Material :

Nylon 6/6

Minimum Operating Temperature :

- 20 C

Manufacturer :

Molex

Body Breadth :

0.183 inch

Reference Standard :

UL

Pbfree Code :

yes

Terminal Pitch :

2 mm

JESD-609 Code :

e3

Body/Shell Style :

Receptacle

Series :

*

Contact Gender :

Pin (Male)

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Type :

Shrouded Header

Maximum Operating Temperature :

+ 85 C

UL Flammability Code :

94V-0

Product Type :

Headers and Wire Housings

Subcategory :

Headers and Wire Housings

Current Rating (Max) :

2/Contact(A)

Termination Style :

Solder Pin

Number of Positions :

10 Position

Operating Temperature :

-20 to 85 °C

Polarization Key :

POLARIZED HOUSING

Operating Temp Range :

-20C to 85C

Number of Rows :

1 Row

Body Depth :

0.234 inch

Mixed Contacts :

No

Insulator Color :

White

Filter Feature :

No

Mounting Style :

Through Hole

Contact Resistance Max :

20(mohm)

Factory Lead Time :

9 Weeks

Product Status :

Active

PCB Contact Pattern :

RECTANGULAR

Total Number of Contacts :

10

ECCN Code :

EAR99

Number of Contact Rows :

1

Product Length (mm) :

22(mm)

DIN Conformance :

No

Package :

Box

Flammability Rating :

UL 94 V-0

Housing Color :

Off White

Mounting Option 1 :

LOCKING

Connector Type :

BOARD CONNECTOR

Mating Contact Pitch :

0.079 inch

Contact Material :

Phosphor Bronze

Gender :

Header

Termination Type :

Solder

Terminal Length :

0.129 inch

Reach Compliance Code :

Compliant

Contact Plating :

Tin

Contact Style :

SQ PIN-SKT

Voltage Rating Max :

125V

Additional Feature :

NONE

Mounting :

Through Hole

IEC Conformance :

No

Option :

GENERAL PURPOSE

Termination Method :

Solder

HTS Code :

8536.69.40.40

Body Orientation :

RIGHT ANGLE

Packaging :

Bag

Mounting Angle :

RIGHT ANGLE
