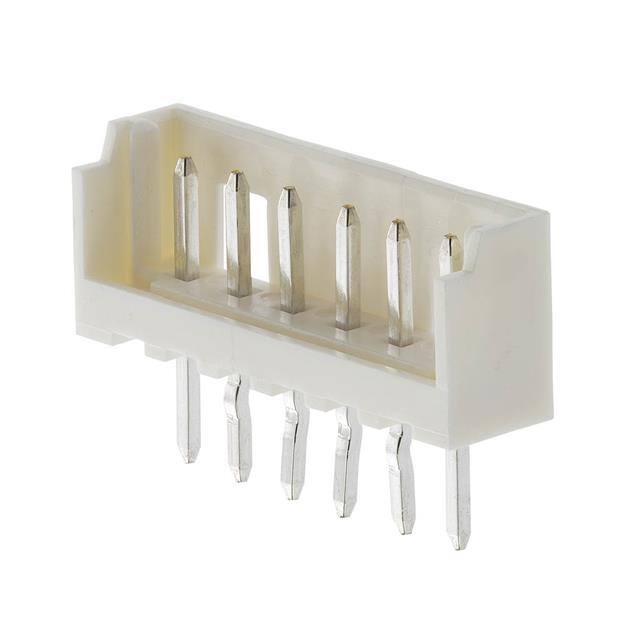

53253-1280

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Contact Plating :

TIN OVER NICKEL

Reach Compliance Code :

Compliant

Number of Contacts :

12(POS)

Product Length (mm) :

26(mm)

Mounting Type :

BOARD

Body Depth :

0.217 inch

HTS Code :

8536.69.40.40

Product Status :

Active

Reliability :

COMMERCIAL

Insulation Resistance :

1000000000 Ω

Manufacturer :

Molex

Total Number of Contacts :

12

Housing Color :

Natural

Type :

Wire to Board

PCB Contact Pattern :

RECTANGULAR

Packaging :

Tray

Gender :

HDR

Current Rating (Max) :

2/Contact(A)

Package :

Box

Contact Resistance :

20 mΩ

Contact Gender :

Male

Mounting Option 1 :

LOCKING

Product Depth (mm) :

3.65(mm)

Body Orientation :

Straight

Mating Contact Pitch :

0.079 inch

Contact Pattern :

RECTANGULAR

Operating Temp Range :

-40C to 105C

ECCN Code :

EAR99

Body Breadth :

0.144 inch

Contact Style :

SQ PIN-SKT

Contact Material :

Brass

Terminal Length :

0.091 inch

Terminal Pitch :

2.0066 mm

Voltage Rating Max :

125V

Reference Standard :

UL

Pitch (mm) :

2(mm)

Subcategory :

Headers and Edge Type Connectors

Housing Material :

Nylon 6/6

Termination Method :

Solder

Number Of PCB Rows :

1

Connector Type :

BOARD CONNECTOR

Number of Contact Rows :

1

Termination Type :

Solder

Series :

*

Product Height (mm) :

5.5(mm)

Mounting Style :

Through Hole
