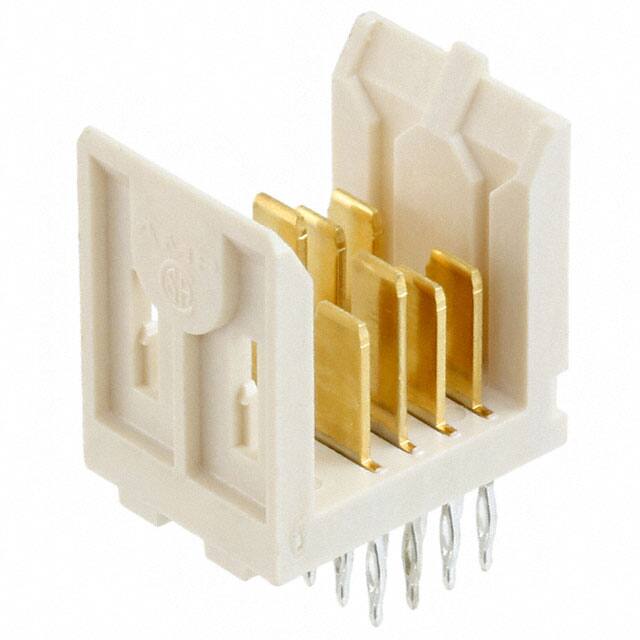

536606-1
Or copy the link below:
- Mfr.Part #
- 536606-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER FUTUREBUS 8POS PCB
- Stock
- 13,666
- In Stock ：
- 13,666
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Specialized
- Contact Pattern :
- RECTANGULAR
- Number of Conductors :
- ONE
- Durability :
- 250 Cycles
- Body Breadth :
- 0.466 inch
- MIL Conformance :
- No
- Option :
- GENERAL PURPOSE
- Reach Compliance Code :
- Compliant
- Contact Style :
- BLADE PIN-SKT
- Body Length or Diameter :
- 0.622 inch
- Polarization Key :
- POLARIZED HOUSING
- Mating Contact Pitch :
- 0.079 inch
- Mating Contact Row Spacing :
- 0.079 inch
- Pbfree Code :
- No
- IEC Conformance :
- No
- Insulation Material :
- Liquid Crystal Polymer (LCP)
- Terminal Pitch :
- 2mm
- Reference Standard :
- UL, CSA
- Body/Shell Style :
- Receptacle
- Termination Type :
- Press Fit
- Mixed Contacts :
- No
- Terminal Length :
- 0.167 inch
- Board Mounting Option :
- POLARIZATION POST
- Reliability :
- COMMERCIAL
- Insertion Force-Max :
- 1.4734 N
- Plating Thickness :
- FLASH inch
- Mounting Style :
- Straight
- Additional Feature :
- Z-PACK
- Operating Temperature (Max) :
- 125°C
- Contact Material :
- Phosphor Bronze
- PCB Contact Row Spacing :
- 2.0066 mm
- Number Of PCB Rows :
- 4
- PCB Contact Pattern :
- RECTANGULAR
- Total Number of Contacts :
- 8
- Mounting Type :
- BOARD
- DIN Conformance :
- No
- Contact Gender :
- Male
- Contact Finish - Mating :
- NOT SPECIFIED
- HTS Code :
- 8536.69.40.40
- Withdrawl Force-Min :
- .278 N
- Filter Feature :
- No
- Body Depth :
- 0.67 inch
- RoHS Status :
- Non-RoHS Compliant
- Connector Type :
- BOARD CONNECTOR
- ECCN Code :
- EAR99
- Number of Rows :
- 4
- Operating Temperature (Min) :
- -55°C
- Datasheets
- 536606-1
