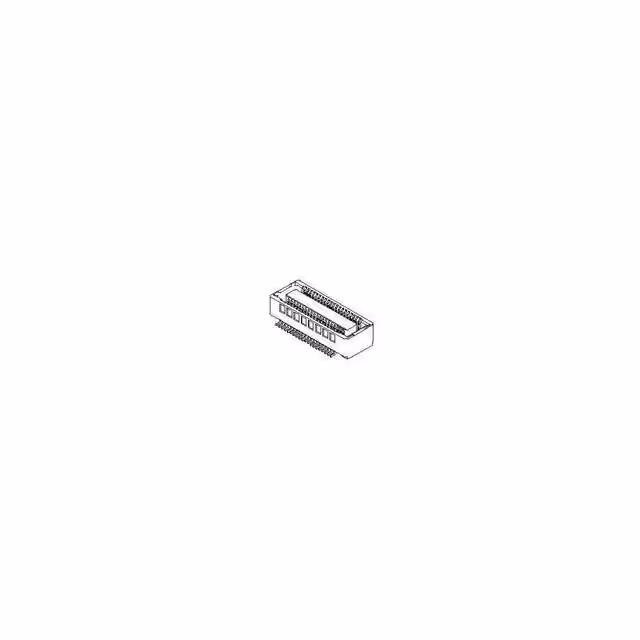

54684-0804

Manufacturer :

Molex

Product Category :

Arrays, Edge Type, Mezzanine (Board to Board)

Manufacturer :

Molex

Type :

Board to Board

Product Type :

Board to Board and Mezzanine Connectors

Pitch (mm) :

0.4(mm)

Product :

Receptacles

Contact Plating :

Gold

Series :

54684

Application :

Board-to-Board

Body Orientation :

Straight

Housing Color :

Brown

Termination Style :

Solder

Current Rating :

300 mA

Product Length :

18.7 mm

RoHS Status :

RoHS Compliant

Number of Positions :

80 Position

Minimum Operating Temperature :

- 25 C

Housing Material :

Thermoplastic

Number of Contact Rows :

2

Product Height (mm) :

2.6(mm)

Mounting Angle :

Vertical

Mounting :

Surface Mount

Product Length (mm) :

18.7(mm)

Subcategory :

Board to Board and Mezzanine Connectors

RoHS :

Details

Number of Rows :

2 Row

Product Status :

Active

Voltage Rating :

30 V

Packaging :

Bag-packed

Base/Housing Material :

Thermoplastic

Operating Temp Range :

-25C to 105C

Orientation :

Vertical

Voltage Rating Max :

30VDC/30VAC

Gender :

Receptacle

Number of Contacts :

80(POS)

Product Category :

Board to Board and Mezzanine Connectors

Brand :

Molex

Operating Temperature :

-25 to 105 °C

Mounting Style :

Surface Mount

Current Rating (Max) :

0.3/Contact(A)

Product Depth (mm) :

4(mm)

Termination Method :

Solder

Maximum Operating Temperature :

+ 105 C

Pitch :

0.4000 mm

Contact Material :

Phosphor Bronze

Tradename :

SlimStack
