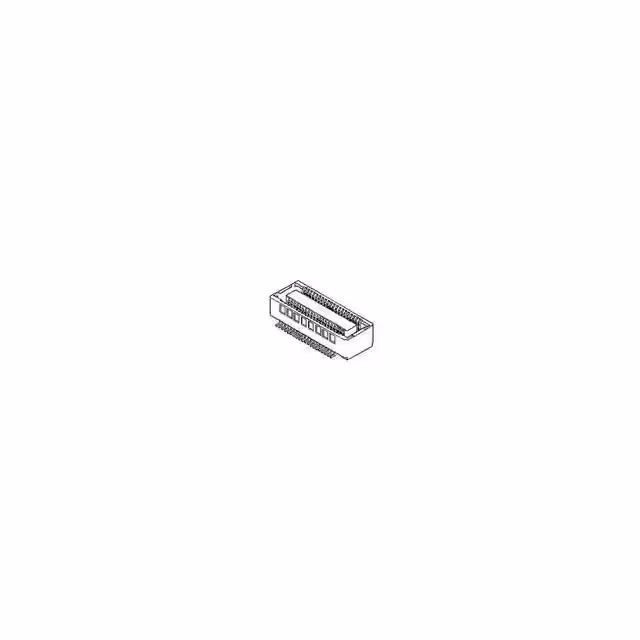

54684-1004

Manufacturer :

Molex

Product Category :

Arrays, Edge Type, Mezzanine (Board to Board)

Number of Contacts :

100(POS)

Contact Style :

BELLOWED TYPE

Contact Pattern :

RECTANGULAR

Housing Color :

Brown

Reference Standard :

UL

Housing Material :

Thermoplastic (TP)

Product Type :

Board to Board and Mezzanine Connectors

Pin Count :

100

PCB Contact Pattern :

RECTANGULAR

Termination Type :

Surface Mount

Contact Plating :

Gold

Plating Thickness :

4u inch

Body/Shell Style :

Receptacle

Type :

Board to Board

PCB Contact Row Spacing :

4.572 mm

Termination Method :

Solder

Orientation :

Vertical

Product :

Receptacles

Body Breadth :

0.157 inch

Pitch :

0.4000 mm

Mounting Angle :

Vertical

Polarization Key :

POLARIZED HOUSING

Contact Resistance :

60 mΩ

Product Height (mm) :

2.6(mm)

Brand :

Molex

Product Length :

22.9 mm

Reach Compliance Code :

Compliant

Durability :

30 Cycles

Voltage Rating :

30 V

Product Depth (mm) :

5.1(mm)

Base/Housing Material :

LCP (Liquid Crystal Polymer)

Product Length (mm) :

22.7(mm)

Pitch (mm) :

0.4(mm)

Number Of PCB Rows :

2

Insulator Color :

Brown

HTS Code :

8536.69.40.40

ECCN Code :

EAR99

Contact Material :

Phosphor Bronze

Operating Temperature :

-25 to 105 °C

Current Rating (Max) :

0.3/Contact(A)

Minimum Operating Temperature :

- 25 C

Connector Type :

BOARD CONNECTOR

Number of Positions :

100 Position

Tradename :

SlimStack

Current Rating :

300 mA

Mating Contact Pitch :

0.016 inch

Mounting Type :

BOARD

Packaging :

Tape and Reel

Subcategory :

Board to Board and Mezzanine Connectors

Terminal Pitch :

0.4064 mm

Factory Lead Time :

11 Weeks

Number of Rows :

2 Row

Series :

54684

Application :

Board-to-Board

Body Orientation :

Straight

Reliability :

COMMERCIAL

Manufacturer :

Molex

Contact Resistance Max :

60(mohm)

Number of Contact Rows :

2

Operating Temp Range :

-25C to 105C

Body Depth :

0.102 inch

RoHS :

Details

Termination Style :

Solder

Total Number of Contacts :

100

Rated Current (Signal) :

0.3 A

Mounting :

Surface Mount

Contact Gender :

FEMALE

Contact Finish Termination :

Gold Over Nickel

Mounting Option 1 :

LOCKING

Insulation Resistance :

100000000 Ω

Voltage Rating Max :

30VDC/30VAC

Dielectric Withstanding Voltage :

250VAC V

Product Status :

Active

Gender :

Receptacle

Product Category :

Board to Board and Mezzanine Connectors

Maximum Operating Temperature :

+ 105 C

Mounting Style :

Surface Mount
