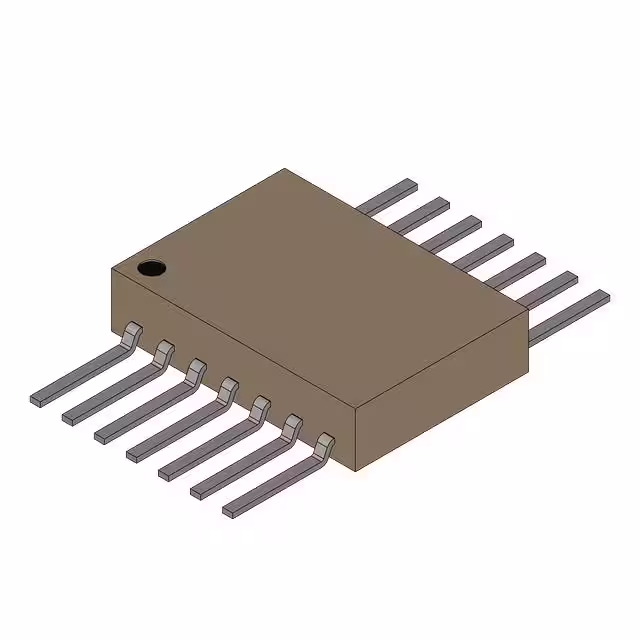

5962R9950402VZA

Manufacturer :

National Semiconductor

Product Category :

Instrumentation, OP Amps, Buffer Amps

Amplifier Type :

Operational Amplifier

Supply Voltage :

5V

Terminal Pitch :

1.27mm

Frequency Compensation :

yes

Number of Pins :

14

Common Mode Rejection Ratio :

70 dB

Lead Free :

Contains Lead

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Width :

6.35mm

Average Bias Current-Max (IIB) :

0.050555μA

Screening Level :

MIL-PRF-38535 Class V

RoHS Status :

RoHS Compliant

Voltage Gain :

93.98dB

Length :

9.906mm

Mount :

Surface Mount

Height :

2.34mm

Terminal Form :

Gull wing

Terminal Position :

Dual

Max Operating Temperature :

125°C

Number of Elements :

4

ECCN Code :

EAR99

Package :

Tray

Product Status :

Active

Low-Offset :

No

Number of Functions :

4

Min Supply Voltage :

3V

Wideband :

No

Qualification Status :

Qualified

Low-Bias :

No

Min Dual Supply Voltage :

1.5V

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Input Offset Voltage (Vos) :

2mV

Input Offset Current-Max (IIO) :

0.03μA

Power Dissipation :

700mW

Slew Rate :

0.1 V/µs

Gain Bandwidth Product :

1MHz

Series :

*

Max Supply Voltage :

32V

Min Operating Temperature :

-55°C

Programmable Power :

No

Thickness :

1.778mm

Power Supply Rejection Ratio (PSRR) :

65dB

Radiation Hardening :

yes

Lifecycle Status :

ACTIVE (Last Updated: 1 week ago)

Max Dual Supply Voltage :

16V

Micropower :

yes

Number of Terminations :

14

Bias Current-Max (IIB) @25C :

0.01μA

Temperature Grade :

Military

Total Dose :

100k Rad(Si) V

Architecture :

VOLTAGE-FEEDBACK

Pin Count :

14

Unity Gain BW-Nom :

1000 kHz

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Supply Current-Max :

0.3mA
