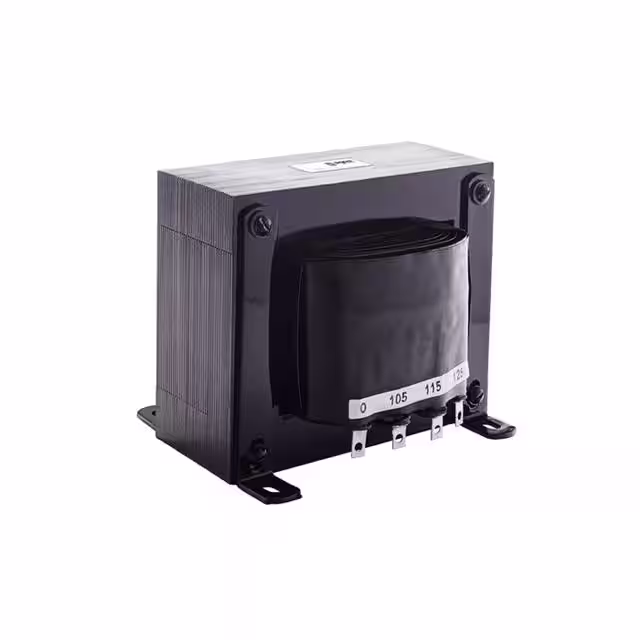

68-25

Manufacturer :

Signal Transformer

Product Category :

Power Transformers

Weight :

40lbs 18.1kg

ECCN Code :

EAR99

Physical Dimension :

162mm X 184.2mm X 134.9mm

Max Output Current :

25A

Height Seated (Max) :

134.90mm

Additional Feature :

THE TWO SECONDARIES HAVE CENTER TAPPED CONNECTIONS

Power - Max :

1700VA

Voltage - Primary :

105V 115V 125V 230V

Type :

Laminated Core

Voltage - Secondary (Full Load) :

Parallel 34V Series 68V

Output Voltage 1 :

34V

Size / Dimension :

162.00mm Lx184.20mm W

Primary Winding(s) :

Dual

Mounting Type :

Chassis Mount

Output Voltage 2 :

34V

Termination :

Solder

Voltage - Isolation :

1500Vrms

Reach Compliance Code :

Unknown

Termination Style :

Solder, Quick Connect

Length :

162mm

Number of Secondary Winding :

2

RoHS Status :

ROHS3 Compliant

Max Power Dissipation :

1.7kW

Current - Output (Max) :

Parallel 50A Series 25A

Moisture Sensitivity Level (MSL) :

Not Applicable

Factory Lead Time :

14 Weeks

Center Tap :

yes

Mount :

Chassis Mount

Width :

184.2mm
