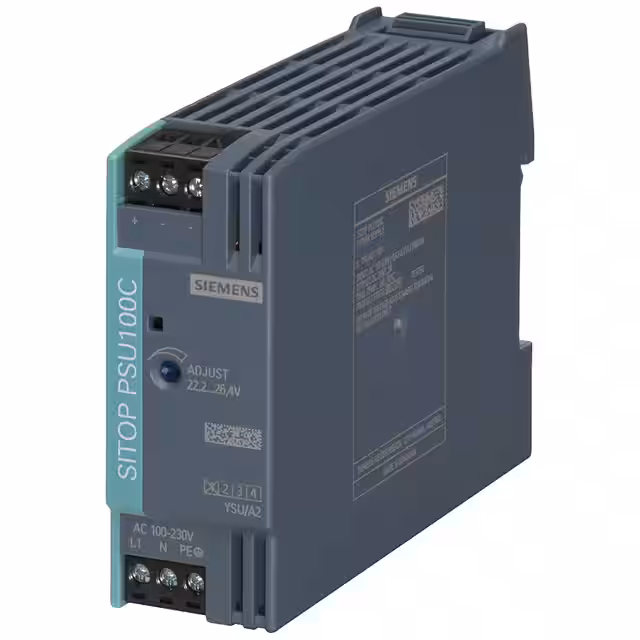

6EP13215BA00

Manufacturer :

Siemens

Product Category :

No. of outputs :

1x

Power (Watts) :

24W

Content :

1pc(s)

Max. temperature :

+70°C

Input Type :

AC or DC

Size / Dimension :

3.94 L x 1.18 W x 3.15 H (100.0mm x 30.0mm x 80.0mm)

Power :

24W

Dim :

(W x H x D) 30 x 80 x 100 mm

Voltage - Output 1 :

12V

Number of Outputs :

1

Series :

SITOP PSU100C

Voltage - Output 5 :

-

Manufacturer part # :

6EP1321-5BA00

Voltage - Output 4 :

-

Standard Number :

60950-1; UL 508

Output Voltage :

12V DC

Min. temperature :

-20°C

Additional Feature :

ALSO HAVE ADDITIONAL DC INPUT RANGE FROM 110V TO 300 V

Manufacturer :

Siemens

Analog IC - Other Type :

AC-DC REGULATED POWER SUPPLY MODULE

Package :

Bulk

Voltage - Output 6 :

-

Approval Agency :

CB, cCSAus, CE, CSA, cUL, cULus, UL

Load Regulation :

1%

Technology :

Hybrid

Reach Compliance Code :

Unknown

Trim/Adjustable Output :

yes

Minimum Load Required :

-

Connection :

Screw Terminal

Max. operating temperature :

70°C

Output Voltage-Max :

12.9 V

Voltage - Output 2 :

-

Output Voltage-Min :

10.5 V

Number of Terminals :

7

Terminal Form :

UNSPECIFIED

Terminal Position :

UNSPECIFIED

Output current (max.) - rounded :

2A

Inputs :

1

Current - Output (Max) :

2A

Power Rating :

24W

Output voltage (max.) :

12.9V DC

JESD-30 Code :

R-XXMA-X7

Operating Temperature :

-20°C ~ 70°C (With Derating)

Input Voltage :

85 → 264V ac

Mounting Type :

DIN Rail Mount

Depth :

100mm

Number of Functions :

1

Max. output current :

2A

Efficiency :

82%

Surface Mount :

No

Temperature Grade :

Other

Applications :

Hazardous Locations, Industrial, ITE (Commercial)

Output voltage (nominal) :

12V DC

Package Shape :

RECTANGULAR

Product Status :

Active

Output Current :

2A

Type :

SITOP PSU100C 12 V/2 A

Height :

80mm

Min. input voltage :

85V AC

Total Power Output-Max :

24 W

Weight :

0.17kg

Output voltage (min.) :

10.5V DC

Input Voltage-Nom :

100 V

Width :

30mm

Voltage - Output 3 :

-

Output current (details) :

2.0A

Features :

Adjustable Output, IP20, Universal Input

Input voltage (max.) :

264V AC
