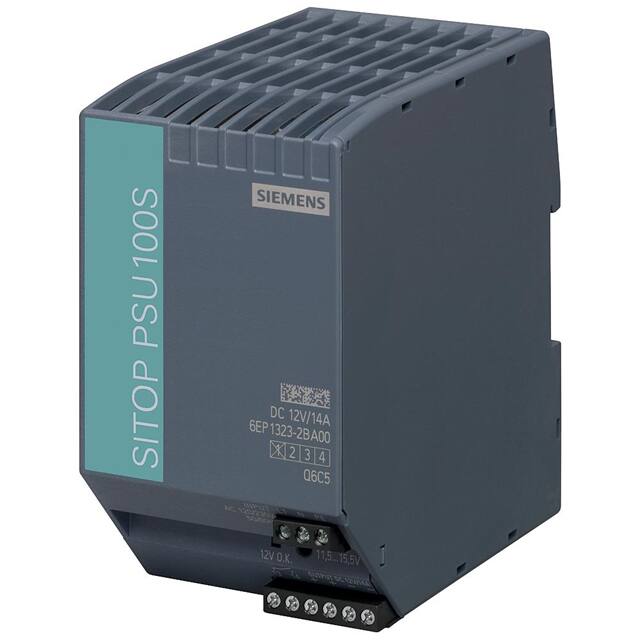

6EP13232BA00

Manufacturer :

Siemens

Product Category :

Min Operating Temperature :

-25 °C

Number of Outputs :

1

Output voltage (nominal) :

12V DC

RoHS :

Compliant

Voltage - Output 6 :

-

Height :

125mm

Rail mounting possible :

yes

Current - Output (Max) :

14A

Content :

1pc(s)

Min Input Voltage :

120 V

Width :

70mm

Size / Dimension :

4.72 L x 2.76 W x 4.92 H (120.0mm x 70.0mm x 125.0mm)

Voltage - Output 3 :

-

Minimum Load Required :

-

Voltage - Output 4 :

-

Depth :

125mm

Series :

SITOP PSU100S

Max. output current :

14A

Connection :

Screw Terminal

Output current (max.) - rounded :

14A

Max Operating Temperature :

70 °C

Voltage - Output 2 :

-

Power :

120W

Max Input Voltage :

230 V

Input Voltage :

85 → 132V ac

Weight :

0.8kg

Output Current :

14 A

Output Voltage :

12V DC

Power Rating :

168W

Manufacturer part # :

6EP1323-2BA00

Product Status :

Active

Voltage - Output 1 :

12V

Approval Agency :

cCSAus, CE, cULus, UL

Type of electric connection :

Screw connection

Voltage type of supply voltage :

AC

Dim :

(W x H x D) 70 x 125 x 125 mm

Standard Number :

60950-1; UL 508

Input Type :

AC

Type :

SITOP PSU100S 12 V/14 A

Load Regulation :

1%

Min. input voltage :

120V AC

Operating Temperature :

-25°C ~ 70°C

Connections :

Screw Terminals

Min Output Voltage :

12 V

Features :

Adjustable Output, IP20

Mounting Type :

DIN Rail Mount

Length :

125 mm

Applications :

Industrial, ITE (Commercial)

Max Output Voltage :

12 V

Power (Watts) :

-

Suitable for safety functions :

No

Efficiency :

87 %

Package :

Box

Degree of protection (IP) :

IP20

Voltage - Output 5 :

-

Input voltage (max.) :

230V ac

Output voltage (min.) :

12V DC

Modular version :

yes

No. of outputs :

1x

Output voltage (max.) :

12V DC

Output current (details) :

14A
