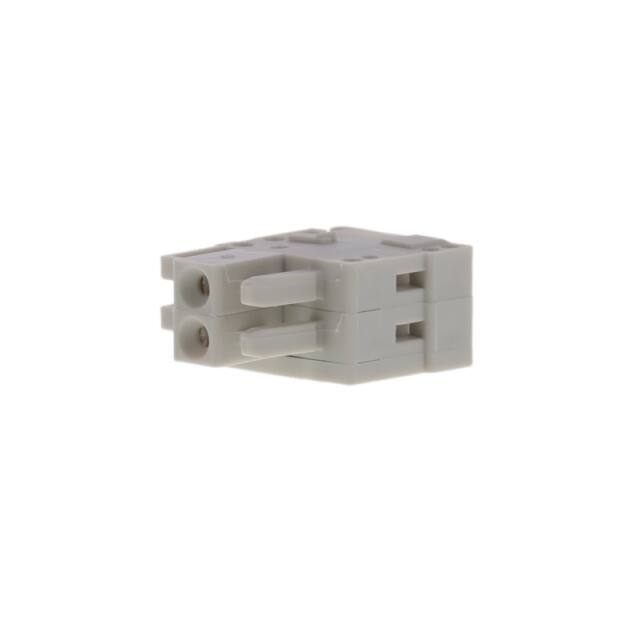

734-102

Manufacturer :

WAGO

Product Category :

Headers, Plugs and Sockets

Wire Strip Length :

6-7mm

Series :

734

Number of Contact Rows :

1

Product Length (mm) :

9.2(mm)

Contact Tail Length :

-

Stripping length (max.) :

7.00mm

Wire Size :

28-14 AWG

Packaging :

Box

Manufacturer :

Wago

Mounting Type :

Free Hanging (In-Line)

Connection :

Spring-loaded terminal

Contact Pitch (mm) :

3.5(mm)

Wire Gauge :

14-28(AWG)

Rated Voltage :

160V

Voltage :

300 V

Torque - Screw :

-

Rated Current :

10A

Number of Contacts :

2 Pole

Product Depth (mm) :

18.6(mm)

Current - UL :

10 A

Pitch :

0.138 (3.50mm)

Type :

WAGO GmbH and Co. KG

Contact Finish :

Tin

Insulation Height :

0.528 (13.40mm)

Number of Positions :

2

Ingress Protection :

-

Operating Voltage (Max) :

160V

Package :

Bulk

Wire Gauge or Range - mm² :

0.08-1.5mm²

Base Product Number :

734

Housing Color :

Light Gray

Min. cross section :

0.08mm²

Dim :

(L x W x H) 9.20 x 18.60 x 13.40 mm

Operating Temperature :

-60°C ~ 100°C

Manufacturer part # :

734-102

Features :

Retention Latches (Non-Wire Side)

Temperature :

-60-100 °C

Header Orientation :

-

Nominal current :

10A

Product Status :

Active

Current :

10 A

Screw Size :

-

Rad Hardened :

No

Material Flammability Rating :

UL94 V-0

AWG max. :

14

Body Orientation :

Straight

Current - IEC :

10A

Voltage - UL :

300 V

Pins per row :

2

Size :

28-14 AWG

Voltage - IEC :

320 V

Nominal current - rounded value :

10A

Gender :

F

Stripping Length :

6-7 mm

Case material :

PA 66

Nominal voltage :

300V

Contact Mating Finish :

Tin

Mounting Style :

CABLE

Connector contact surface :

Tin plated

Wire Size (AWG) :

28AWG to 14AWG

Termination Style :

Screwless - Spring Cage, Tension Clamp

Contact Material :

COPPER ALLOY

max. cross section :

1.5mm²

AWG (min.) :

28

Content :

200pc(s)

Current Rating (Max) :

10(A)

Contact Plating :

Tin

Plug Wire Entry :

180°

CS :

3.50mm

Housing Material :

Polyamide 6/6

Approvals :

CCA

Number of Levels :

1

Total number of pins :

2

No. of rows :

1

Industrial packaging :

yes

Length :

9.20mm

Operating Temp Range :

-60C to 100C

Width :

18.60mm

Color :

Gray

Positions Per Level :

2

Wire Gauge or Range - AWG :

14-28 AWG

Height :

13.40mm

Product Height (mm) :

13.4(mm)
