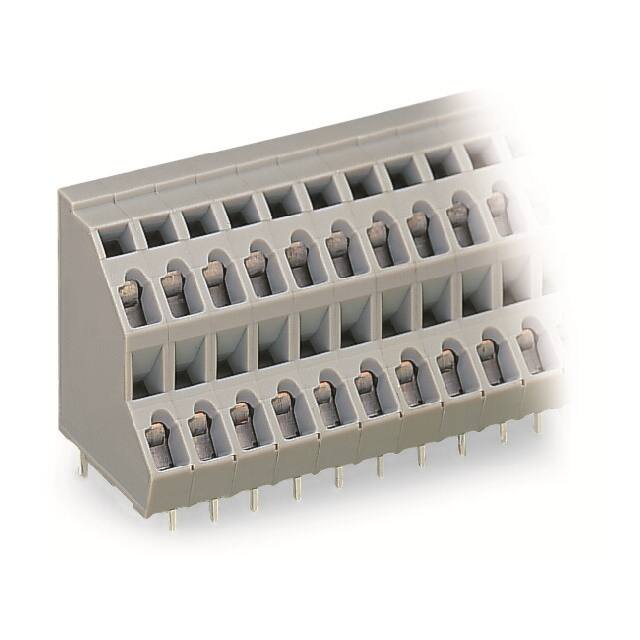

736-107

Manufacturer :

WAGO

Product Category :

Wire to Board

Connectable conductor cross section fine-strand without cable end sleeve :

0.08 - 2.5

Automotive :

No

Wire Termination :

Screwless - Spring Cage, Tension Clamp

Height :

26.5

Composition :

Polyamide

Temperature Range :

-76 to 221 Degrees F

Number of Poles :

7

Pollution degree :

2

Clamp Material - Plating :

Steel - Nickel Plated

Manufacturer :

Wago

Approvals :

cURus;CSA

Connectable conductor cross section solid-core :

0.08 - 2.5

Voltage :

300 V

Mating Orientation :

45° (135°) Angle with Board

Screw Thread :

-

Connection Type :

Spring Clamp

Current :

10 A

Connectable conductor cross section fine-strand with cable end sleeve :

0.25 - 1.5

Torque - Screw :

-

PPAP :

No

Inflammability class of insulation material according to with UL94 :

V0

Features :

-

Pin Length :

4 MilliMeters

Pitch :

0.197 (5.00mm)

Over voltage category :

III

RoHS :

yes

Rated surge voltage :

4

ECCN (US) :

EAR99

Contact Material - Plating :

Electrolytic Copper - Tin Plated

Positions Per Level :

7

Wire Gauge :

12-28 AWG

Mounting Type :

PCB Mount

Rated current In :

21

Connectable conductor cross section multi-wired :

0.08 - 2.5

Series :

-

Product Status :

Active

EU RoHS :

Compliant

Operating Temperature :

-60°C ~ 105°C

Color :

Gray

Type of fastening :

Solder

Number of Levels :

2

Package :

Box

Screw Material - Plating :

-

Housing Material :

Polyamide (PA66), Nylon 6/6
