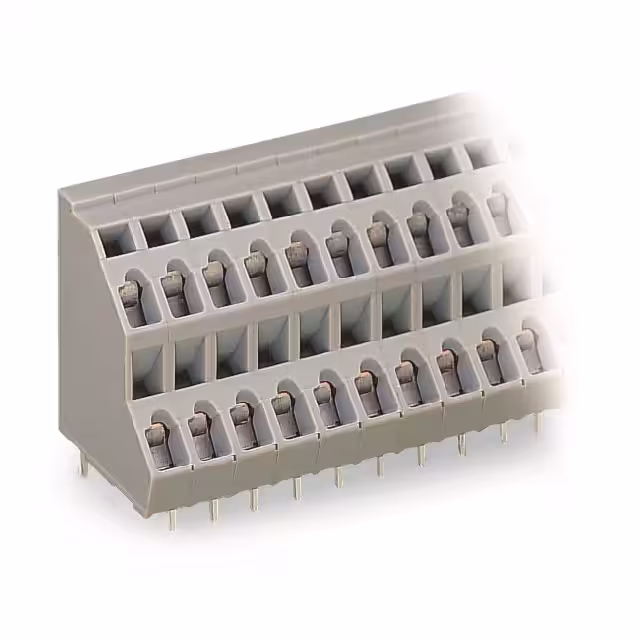

736-212

Manufacturer :

WAGO

Product Category :

Wire to Board

Screw Thread :

-

Number of Poles :

12

Manufacturer :

Wago

Mating Orientation :

45° (135°) Angle with Board

Cross section (flexible) (min.) :

0.08mm²

Pins per row :

12

Series :

736

Nominal voltage :

320V

Contact Material - Plating :

Electrolytic Copper - Tin Plated

Screw Material - Plating :

-

Temperature Range :

-76 to 221 Degrees F

Inflammability class of insulation material according to with UL94 :

V0

Connectable conductor cross section solid-core :

0.08 - 2.5

Connectable conductor cross section multi-wired :

0.08 - 2.5

Over voltage category :

III

Package :

Box

Voltage :

300 V

Content :

28pc(s)

Number of Levels :

2

Composition :

Polyamide

Connectable conductor cross section fine-strand with cable end sleeve :

0.25 - 2.5

Rated surge voltage :

4

Cross section (inflexible) (min.) :

0.08mm²

Wire protection :

yes

Industrial packaging :

yes

Packaging type :

Other

Features :

+ CAGE CLAMP®

CS :

5mm

RoHS :

yes

Rated current In :

21

Product Status :

Active

Approvals :

cURus;CSA

Connection :

Spring-loaded terminal,Print

Manufacturer part # :

736-212

Type :

736-212

Clamp Material - Plating :

Steel - Nickel Plated

Mounting Type :

PCB Mount

Torque - Screw :

-

AWG (min.) :

28

Cross section (flexible) (max.) :

2.50mm²

Color :

Gray

No. of rows :

2

Type of fastening :

Solder

Operating Temperature :

-60°C ~ 105°C

Height :

30.50mm

Wire Termination :

Screwless - Spring Cage, Tension Clamp

Pollution degree :

2

Pitch :

0.197 (5.00mm)

Housing Material :

Polyamide (PA66), Nylon 6/6

Connection Type :

Spring Clamp

Length :

21.00mm

Stripping length (max.) :

6mm

Positions Per Level :

24

Pin Length :

4 MilliMeters

Min. stripping length :

8mm

Cross section (inflexible) (max.) :

2.50mm²

AWG max. :

12

Connectable conductor cross section fine-strand without cable end sleeve :

0.08 - 2.5

Width :

61.00mm

Wire Gauge :

12-28 AWG

Current :

10 A
