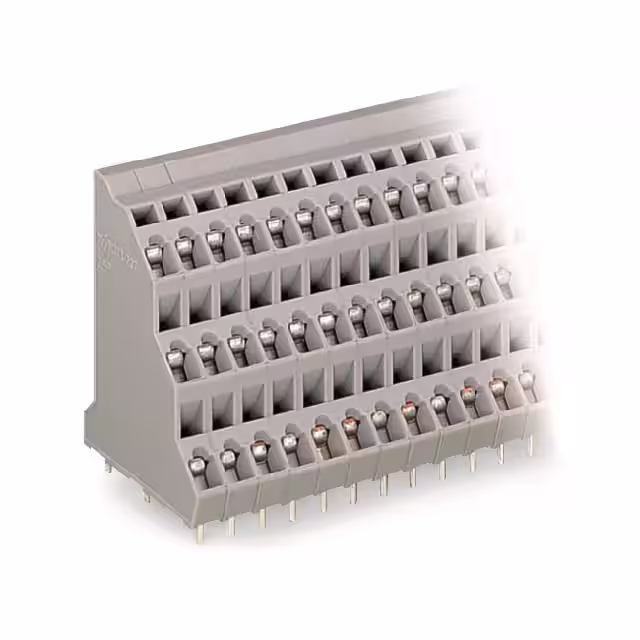

737-106

Manufacturer :

WAGO

Product Category :

Wire to Board

Housing Color :

Gray

AWG max. :

12

Min. stripping length :

8mm

Cross section (inflexible) (min.) :

0.08mm²

Package :

Box

Positions Per Level :

18

Industrial packaging :

yes

Connectable conductor cross section solid-core :

0.08 - 2.5

Connection :

Spring-loaded terminal,Print

Pitch :

0.197 (5.00mm)

Operating Temperature :

-60°C ~ 105°C

Approvals :

cURus;CSA

Width :

44.00mm

Color :

Gray

HTS :

8536.90.40.00

Mounting :

Through Hole

Content :

32pc(s)

Clamp Material - Plating :

Steel - Nickel Plated

Pins per row :

6

Torque - Screw :

-

Product Status :

Active

Maximum Voltage Rating :

250V

Number of Poles :

6

Rated surge voltage :

4

EU RoHS :

Compliant

Number of Levels :

2

Number of Contacts :

18

Screw Thread :

-

Pollution degree :

2

Type :

Terminal Block

AWG (min.) :

28

Manufacturer part # :

737-106

Cross section (flexible) (min.) :

0.08mm²

Product Length (mm) :

31

Connectable conductor cross section fine-strand without cable end sleeve :

0.08 - 2.5

Composition :

Polyamide

Connection Type :

Spring Clamp

Housing Material :

Polyamide (PA66), Nylon 6/6

Mounting Type :

PCB Mount

Automotive :

No

No. of rows :

3

Manufacturer :

Wago

RoHS :

yes

Height :

31.00mm

ECCN (US) :

EAR99

PPAP :

No

Rated current In :

21

Number of Circuits :

18

Voltage :

300 V

Connectable conductor cross section fine-strand with cable end sleeve :

0.25 - 2.5

Type of fastening :

Solder

Features :

+ CAGE CLAMP®

Product Height (mm) :

40

Packaging :

Box

Packaging type :

Other

Inflammability class of insulation material according to with UL94 :

V0

Wire Termination :

Screwless - Spring Cage, Tension Clamp

Stripping length (max.) :

6mm

Cross section (flexible) (max.) :

2.50mm²

Screw Material - Plating :

-

Maximum Current Rating (A) :

21

Pin Length :

4 MilliMeters

Wire Gauge :

12-28 AWG

Series :

737

Product Depth (mm) :

31

Maximum Operating Temperature (°C) :

105

Connectable conductor cross section multi-wired :

0.08 - 2.5

Temperature Range :

-76 to 221 Degrees F

Terminal Pitch (mm) :

5

Current :

10 A

Wire protection :

yes

Length :

31.00mm

CS :

5mm

Termination Method :

Solder

Contact Material - Plating :

Electrolytic Copper - Tin Plated

Number of Rows :

3

Mating Orientation :

45° (135°) Angle with Board

Cross section (inflexible) (max.) :

2.50mm²

Over voltage category :

III

Nominal voltage :

320V
