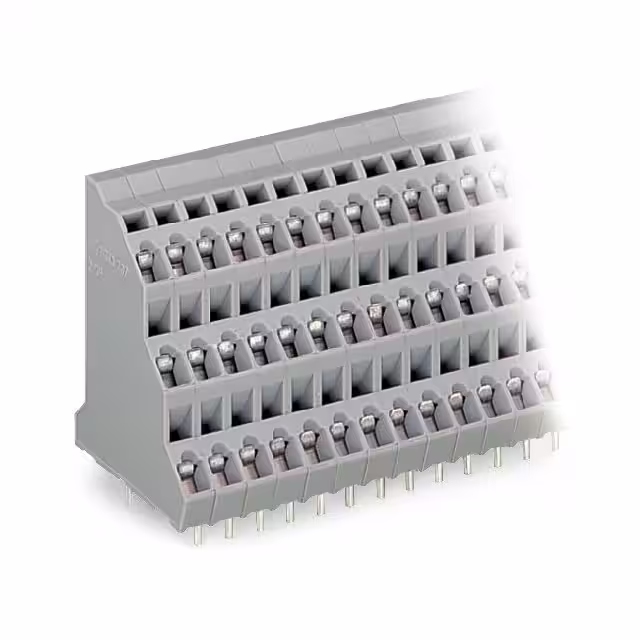

737-224

Manufacturer :

WAGO

Product Category :

Wire to Board

Cross section (inflexible) (min.) :

0.08mm²

CS :

5mm

Cross section (flexible) (max.) :

2.50mm²

Stripping length (max.) :

6mm

Series :

737

Clamp Material - Plating :

Steel - Nickel Plated

Connectable conductor cross section fine-strand with cable end sleeve :

0.25 - 1.5

AWG max. :

12

Over voltage category :

III

Number of Poles :

24

RoHS :

yes

Rated current In :

21

Color :

Gray

Connection Type :

Spring Clamp

Connectable conductor cross section multi-wired :

0.08 - 2.5

Industrial packaging :

yes

Nominal voltage :

320V

Pin Length :

4 mm

Length :

31.00mm

No. of rows :

3

Height :

44.00mm

Screw Thread :

-

Package :

Box

AWG (min.) :

28

Torque - Screw :

-

Type of fastening :

Solder

Wire Termination :

Screwless - Spring Cage, Tension Clamp

Connection :

Spring-loaded terminal,Print

Pins per row :

24

Product Status :

Active

Features :

+ CAGE CLAMP®

Temperature Range :

-76-221 °F

Wire Gauge :

12-28 AWG

Connectable conductor cross section solid-core :

0.08 - 2.5

Width :

121.00mm

Cross section (inflexible) (max.) :

2.50mm²

Manufacturer :

Wago

Mounting Type :

PCB Mount

Operating Temperature :

-60°C ~ 105°C

Packaging type :

Other

Screw Material - Plating :

-

Inflammability class of insulation material according to with UL94 :

V0

Cross section (flexible) (min.) :

0.08mm²

Type :

737-224

Pitch :

0.197 (5.00mm)

Rated surge voltage :

4

Manufacturer part # :

737-224

Positions Per Level :

24

Min. stripping length :

8mm

Connectable conductor cross section fine-strand without cable end sleeve :

0.08 - 2.5

Composition :

Polyamide

Wire protection :

yes

Current :

10 A

Voltage :

300 V

Contact Material - Plating :

Electrolytic Copper - Tin Plated

Number of Levels :

3

Mating Orientation :

45° (135°) Angle with Board

Approvals :

CSA, cURus

Pollution degree :

2

Content :

8pc(s)

Housing Material :

Polyamide (PA66), Nylon 6/6
