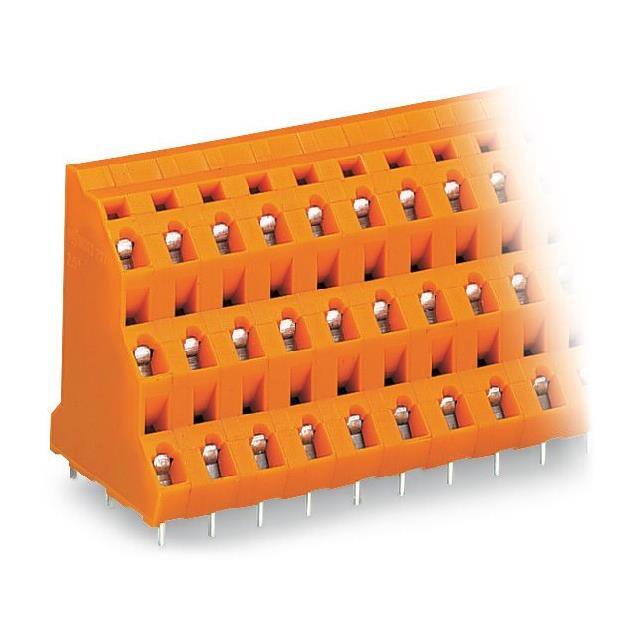

737-616

Manufacturer :

WAGO

Product Category :

Wire to Board

Cross section (inflexible) (min.) :

0.08mm²

Cross section (flexible) (max.) :

2.50mm²

Number of Rows :

3

Torque - Screw :

-

Positions Per Level :

16

Automotive :

No

Length :

31.00mm

Cross section (inflexible) (max.) :

2.50mm²

Connection :

Spring-loaded terminal,Print

Contact Material :

Copper, Tin

Height :

44.00mm

Operating Temperature :

-60°C ~ 105°C

Rated current In :

21

Rated surge voltage :

6

AWG max. :

12

ECCN (US) :

EAR99

Min. stripping length :

16mm

Manufacturer :

Wago

Wire Termination :

Screwless - Spring Cage, Tension Clamp

Wire protection :

yes

Voltage :

300 V

Pin Length :

4 MilliMeters

Features :

+ CAGE CLAMP®

Clamp Material - Plating :

Steel - Nickel Plated

Package :

Box

AWG (min.) :

28

Number of Poles :

16

Connectable conductor cross section multi-wired :

0.08 - 2.5

Series :

737

Cross section (flexible) (min.) :

0.08mm²

Over voltage category :

III

Type of fastening :

Solder

Approvals :

cURus;CSA

Temperature Range :

-76 to 221 Degrees F

Connectable conductor cross section solid-core :

0.08 - 2.5

Composition :

Polyamide

Current :

10 A

Housing Color :

Orange

Industrial packaging :

yes

Color :

Orange

Manufacturer part # :

737-616

Wire Gauge :

12-28 AWG

Connection Type :

Spring Clamp

Connectable conductor cross section fine-strand with cable end sleeve :

0.25 - 2.5

Number of Pins :

48

Width :

120.30mm

Product Status :

Active

CS :

7.62mm

Screw Material - Plating :

-

Contact Material - Plating :

Electrolytic Copper - Tin Plated

Inflammability class of insulation material according to with UL94 :

V0

Type :

737-616

RoHS :

yes

Connectable conductor cross section fine-strand without cable end sleeve :

0.08 - 2.5

Nominal voltage :

630V

Pitch :

0.300 (7.62mm)

Pins per row :

16

Pollution degree :

2

EU RoHS :

Compliant

Content :

8pc(s)

Mating Orientation :

45° (135°) Angle with Board

Mounting Type :

PCB Mount

Number of Levels :

3

PPAP :

No

Packaging type :

Other

No. of rows :

3

Flammability Rating :

UL94 V-0

Housing Material :

Polyamide (PA66), Nylon 6/6

Screw Thread :

-

HTS :

8536.90.40.00

Stripping length (max.) :

6mm
