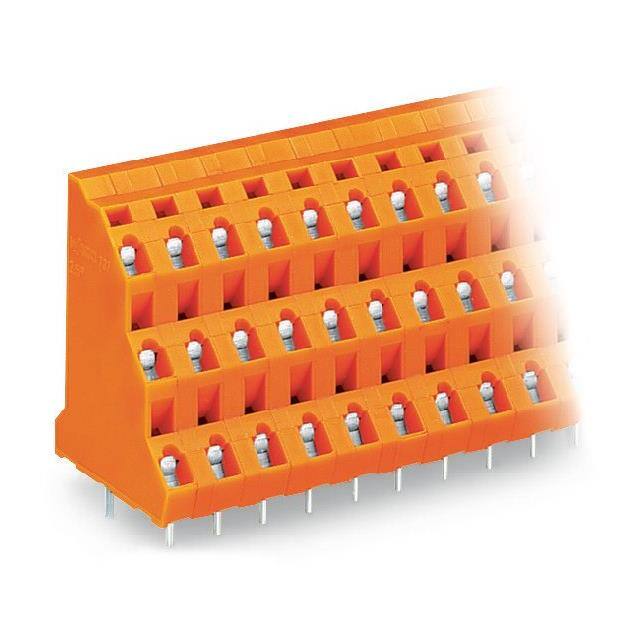

737-666

Manufacturer :

WAGO

Product Category :

Wire to Board

Industrial packaging :

yes

Housing Material :

Polyamide (PA66), Nylon 6/6

Product Status :

Active

Screw Thread :

-

Wire protection :

yes

Voltage :

300 V

Wire Gauge :

12-28 AWG

Contact Material - Plating :

Electrolytic Copper - Tin Plated

Pitch :

0.300 (7.62mm)

Stripping length (max.) :

6mm

Height :

44.00mm

AWG (min.) :

28

Approvals :

CSA, cURus

Operating Temperature :

-60°C ~ 105°C

Number of Levels :

3

Temperature Range :

-76-221 °F

Mating Orientation :

45° (135°) Angle with Board

Color :

Orange

Type :

737-666

Positions Per Level :

16

Pin Length :

4 mm

CS :

7.62mm

Series :

737

Features :

+ CAGE CLAMP®

Pins per row :

16

Min. stripping length :

16mm

Wire Termination :

Screwless - Spring Cage, Tension Clamp

Length :

31.00mm

Cross section (inflexible) (max.) :

2.50mm²

AWG max. :

12

No. of rows :

3

Package :

Box

Number of Poles :

16

Current :

10 A

Clamp Material - Plating :

Steel - Nickel Plated

Cross section (flexible) (max.) :

2.50mm²

Composition :

Polyamide

Width :

120.30mm

RoHS :

yes

Content :

8pc(s)

Mounting Type :

PCB Mount

Screw Material - Plating :

-

Cross section (flexible) (min.) :

0.08mm²

Cross section (inflexible) (min.) :

0.08mm²

Manufacturer part # :

737-666

Nominal voltage :

630V

Torque - Screw :

-

Manufacturer :

Wago

Connection Type :

Spring Clamp

Connection :

Spring-loaded terminal,Print
