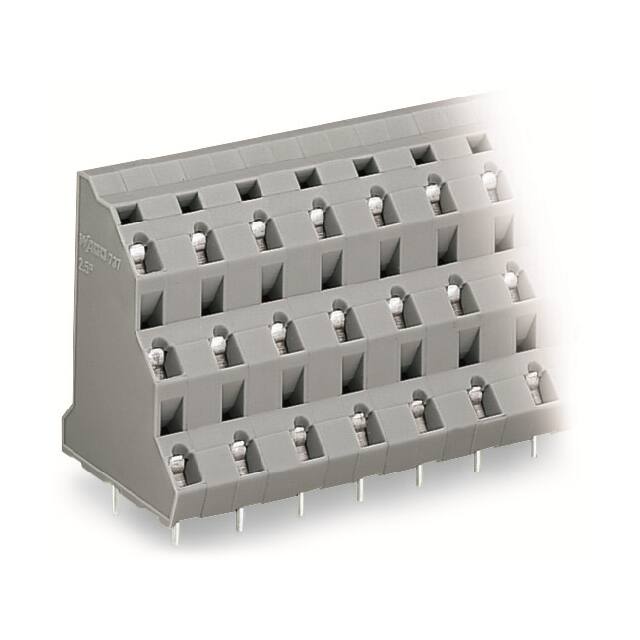

737-758

Manufacturer :

WAGO

Product Category :

Wire to Board

Width :

76.00mm

Height :

44.00mm

Approvals :

CSA, cURus

Manufacturer part # :

737-758

Operating Temperature :

-60°C ~ 105°C

Contact Material :

Copper, Tin

Wire Termination :

Screwless - Spring Cage, Tension Clamp

Cross section (inflexible) (max.) :

2.50mm²

Current :

10 A

Cross section (flexible) (min.) :

0.08mm²

Industrial packaging :

yes

AWG (min.) :

28

Min. stripping length :

16mm

Composition :

Polyamide

Number of Levels :

3

Cross section (inflexible) (min.) :

0.08mm²

Packaging type :

Other

CS :

10mm

Contact Material - Plating :

Electrolytic Copper - Tin Plated

Connectable conductor cross section fine-strand with cable end sleeve :

0.25 - 2.5

Wire protection :

yes

Length :

31.00mm

Stripping length (max.) :

6mm

Connectable conductor cross section multi-wired :

0.08 - 2.5

Mating Orientation :

45° (135°) Angle with Board

Rated surge voltage :

8

Mounting Type :

PCB Mount

Screw Thread :

-

Product Status :

Active

Number of Poles :

8

Voltage :

300 V

Housing Color :

Grey

Screw Material - Plating :

-

Cross section (flexible) (max.) :

2.50mm²

Pin Length :

4 mm

No. of rows :

3

Type of fastening :

Solder

RoHS :

yes

Pollution degree :

2

AWG max. :

12

Pitch :

0.394 (10.00mm)

Clamp Material - Plating :

Steel - Nickel Plated

Number of Pins :

24

Flammability Rating :

UL94 V-0

Nominal voltage :

1000V

Number of Rows :

3

Connectable conductor cross section fine-strand without cable end sleeve :

0.08 - 2.5

Content :

12pc(s)

Package :

Box

Inflammability class of insulation material according to with UL94 :

V0

Series :

737

Connection :

Spring-loaded terminal,Print

Type :

737-758

Temperature Range :

-76-221 °F

Over voltage category :

III

Pins per row :

8

Housing Material :

Polyamide (PA66), Nylon 6/6

Color :

Gray

Wire Gauge :

12-28 AWG

Connectable conductor cross section solid-core :

0.08 - 2.5

Features :

+ CAGE CLAMP®

Manufacturer :

Wago

Rated current In :

21

Connection Type :

Spring Clamp

Torque - Screw :

-

Positions Per Level :

24
