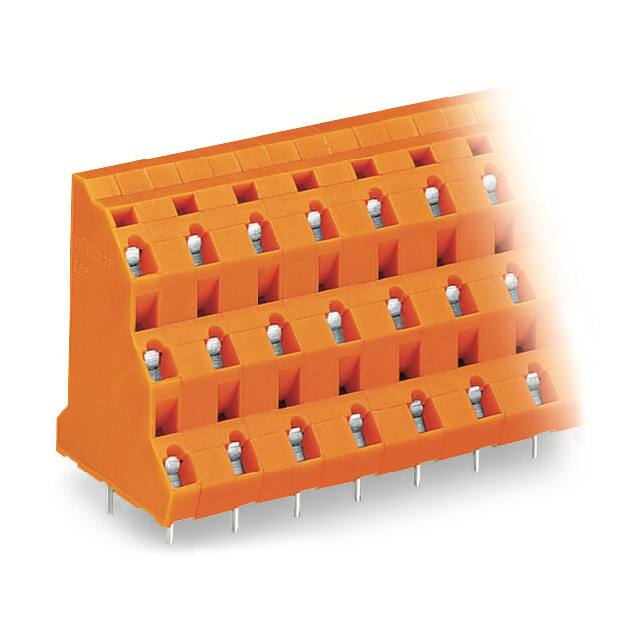

737-858

Manufacturer :

WAGO

Product Category :

Wire to Board

Positions Per Level :

24

Width :

77.12mm

Manufacturer :

Wago

Connectable conductor cross section multi-wired :

0.08 - 2.5

Number of Poles :

8

No. of rows :

3

Content :

12pc(s)

CS :

10.16mm

Manufacturer part # :

737-858

Wire protection :

yes

Voltage :

300 V

Series :

737

AWG max. :

12

Wire Gauge :

12-28 AWG

Composition :

Polyamide

Current :

10 A

Packaging type :

Other

AWG (min.) :

28

Product Status :

Active

Industrial packaging :

yes

Housing Material :

Polyamide (PA66), Nylon 6/6

Contact Material - Plating :

Electrolytic Copper - Tin Plated

Nominal voltage :

1000V

Cross section (flexible) (min.) :

0.08mm²

Color :

Orange

Package :

Box

Temperature Range :

-76-221 °F

Connectable conductor cross section fine-strand without cable end sleeve :

0.08 - 2.5

Min. stripping length :

18mm

Pin Length :

4 mm

Rated surge voltage :

8

Cross section (inflexible) (max.) :

2.50mm²

Inflammability class of insulation material according to with UL94 :

V0

Connection Type :

Spring Clamp

Connectable conductor cross section fine-strand with cable end sleeve :

0.25 - 1.5

Wire Termination :

Screwless - Spring Cage, Tension Clamp

Pollution degree :

2

Pins per row :

8

Clamp Material - Plating :

Steel - Nickel Plated

Screw Material - Plating :

-

Over voltage category :

III

Operating Temperature :

-60°C ~ 105°C

Length :

31.00mm

Connection :

Spring-loaded terminal,Print

Type :

737-858

Cross section (flexible) (max.) :

2.50mm²

Type of fastening :

Solder

Features :

+ CAGE CLAMP®

Pitch :

0.400 (10.16mm)

Number of Levels :

3

Stripping length (max.) :

6mm

Mounting Type :

PCB Mount

Height :

44.00mm

Connectable conductor cross section solid-core :

0.08 - 2.5

RoHS :

yes

Screw Thread :

-

Mating Orientation :

45° (135°) Angle with Board

Cross section (inflexible) (min.) :

0.08mm²

Torque - Screw :

-

Approvals :

CSA, cURus

Rated current In :

21
