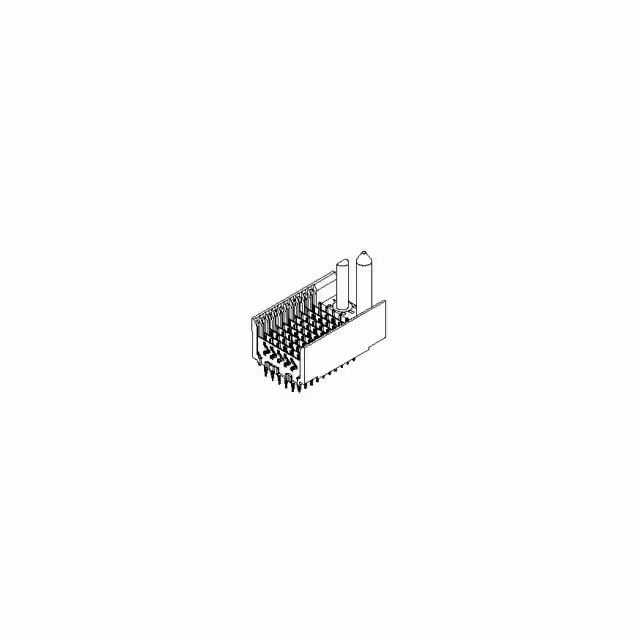

74059-2502

Manufacturer :

Molex

Product Category :

Specialized

Package :

Box

Manufacturer :

Molex

Contact Finish Thickness :

30.0µin (0.76µm)

Contact Style :

SQ PIN-SKT

Number of Positions Loaded :

All

Option :

GENERAL PURPOSE

Max Operating Temperature :

105 °C

Lead Pitch :

2 mm

PCB Contact Pattern :

STAGGERED

Insulation Resistance :

10 GΩ

Housing Material :

Thermoplastic

Voltage Rating (AC) :

120 V

Body Orientation :

Straight

Product Depth (mm) :

17.1(mm)

Body Breadth :

0.673 inch

Mixed Contacts :

No

Contact Gender :

Male

Contact Resistance :

13.5 mΩ

Number of Contact Rows :

6

Additional Feature :

POLARIZED, PANEL MOUNTABLE, NO.OF SHIELDED CONTACTS: 25

Reliability :

COMMERCIAL

Plating Thickness :

30u inch

Number of Positions :

150

Data Rate :

3.125 Gbps

RoHS :

Compliant

ECCN Code :

EAR99

Current Rating (Max) :

2/Contact(A)

Durability :

200 Cycles

Contact Material :

COPPER ALLOY

Filter Feature :

No

Voltage Rating :

120V

Mount :

Through Hole

Body Depth :

0.484 inch

Connector Type :

Header, Male Pins

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Features :

Shielded

Mating Contact Row Spacing :

0.089 inch

PCB Contact Row Spacing :

1.0922 mm

MIL Conformance :

No

Country of Origin :

US

Terminal Pitch :

2 mm

Termination Type :

Press Fit

Dielectric Withstanding Voltage :

750VAC V

Reach Compliance Code :

Compliant

Total Number of Contacts :

175

Connector Style :

VHDM, Guide Right

Product Height (mm) :

25.8(mm)

Pbfree Code :

yes

Mounting Type :

Through Hole

Number Of PCB Rows :

11

DIN Conformance :

No

Material Flammability Rating :

UL94 V-0

UL Flammability Code :

94V-0

Type :

VHDM

Contact Finish :

Gold

Reference Standard :

UL

Current Rating (Amps) :

2A

Termination Method :

Press Fit

Insulator Color :

Black

Operating Temperature :

-55°C ~ 105°C

Mounting Style :

Through Hole

Body/Shell Style :

Receptacle

HTS Code :

8536.69.40.40

Current Rating :

1 A

Mating Contact Pitch :

0.079 inch

Pitch (mm) :

1(mm)

Packaging :

Tube

Color :

Black

Operating Temp Range :

-55C to 105C

Product Length (mm) :

57(mm)

Orientation :

Vertical

Halogen Free :

Low Halogen

Contact Layout, Typical :

-

Series :

VHDM 74059

Product Status :

Active

Manufacturer Lifecycle Status :

Obsolete (Last Updated: 2 years ago)

Pitch :

2 mm

Rated Current (Signal) :

1 A

Contact Pattern :

RECTANGULAR

Housing Color :

Black

Number of Columns :

25

Number of Rows :

6

Voltage Rating Max :

120VDC/120VAC

Max Voltage Rating (DC) :

120.12 kV

Terminal Length :

0.098 inch

Gender :

HDR

Termination :

Through Hole

Number of Contacts :

150(POS)

Subcategory :

Headers and Edge Type Connectors

Min Operating Temperature :

-55 °C

Contact Plating :

Gold Over Nickel

Mounting Option 2 :

LOCKING

Lifecycle Status :

Obsolete (Last Updated: 2 years ago)

Connector Usage :

-

IEC Conformance :

No

Number of Circuits :

150

Mounting Option 1 :

Guide Pin
