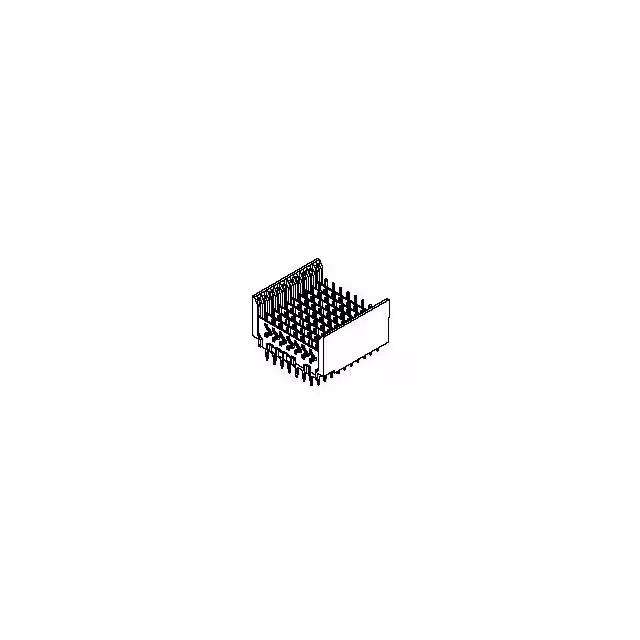

74060-1102

Manufacturer :

Molex

Product Category :

Specialized

Package :

Box

Connector Style :

VHDM

Number of Columns :

10

Operating Temp Range :

-55C to 105C

Contact Finish Thickness :

30.0µin (0.76µm)

Number of Positions :

80 Position

Terminal Pitch :

2 mm

Tradename :

VHDM

Material Flammability Rating :

UL94 V-0

ECCN Code :

EAR99

Number of Positions Loaded :

All

Housing Color :

Black

Body Orientation :

Straight

UL Flammability Code :

94V-0

Number of Rows :

8 Row

Color :

Black

Voltage Rating Max :

120VDC/120VAC

Features :

Shielded

Number of Contacts :

80(POS)

Contact Finish :

Gold

RoHS :

Details

Mixed Contacts :

No

Pitch (mm) :

1(mm)

Brand :

Molex

Current Rating (Max) :

3/Contact(A)

Current Rating :

3 A

Contact Layout, Typical :

-

Reach Compliance Code :

Compliant

Contact Material :

NOT SPECIFIED

Maximum Operating Temperature :

+ 105 C

Termination :

Press-Fit

Product Depth (mm) :

21.6(mm)

Mounting Angle :

Vertical

HTS Code :

8536.69.40.40

Contact Gender :

Male

Termination Type :

Press Fit

MIL Conformance :

No

Product Type :

High Speed / Modular Connectors

Termination Method :

Press Fit

Subcategory :

Backplane Connectors

Product Category :

High Speed / Modular Connectors

Voltage Rating :

120 VAC/DC

Series :

74060

Option :

GENERAL PURPOSE

Contact Plating :

Gold Over Nickel

IEC Conformance :

No

Number of Contact Rows :

8

Pbfree Code :

yes

Gender :

HDR

Product Length (mm) :

20(mm)

Current Rating (Amps) :

3A

Additional Feature :

NUMBER OF SHIELD CONTACTS: 10

Product Height (mm) :

12.3(mm)

Mounting Type :

BOARD

Operating Temperature :

-55°C ~ 105°C

Product Status :

Active

Connector Usage :

-

Type :

VHDM

Pitch :

2 mm

Packaging :

Tube

Termination Style :

Through Hole

Filter Feature :

No

Minimum Operating Temperature :

- 55 C

Mounting Style :

Straight

Total Number of Contacts :

90

DIN Conformance :

No

Connector Type :

BOARD CONNECTOR
