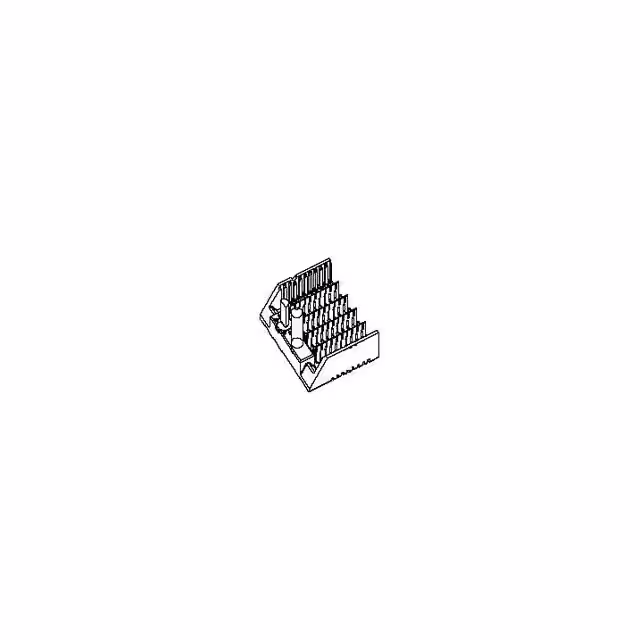

75237-2104

Manufacturer :

Molex

Product Category :

Specialized

Pitch :

1.85 mm

Series :

GbX 75237

Housing Material :

Thermoplastic

ELV :

Compliant

Product Depth (mm) :

31(mm)

Mixed Contacts :

No

Pitch (mm) :

1.85(mm)

Voltage Rating (AC) :

120 V

IEC Conformance :

No

Connector Style :

GbX Guide Left

Contact Style :

BLADE PIN-SKT

Insertion Force-Max :

.5838 N

Connector Type :

Header, Male Pins

Lifecycle Status :

Obsolete (Last Updated: 2 years ago)

Halogen Free :

Low Halogen

Data Rate :

8 Gbps

Number of Pairs :

5

Mounting Type :

Through Hole

Number of Rows :

10

Operating Temp Range :

-55C to 105C

DIN Conformance :

No

Contact Material :

COPPER ALLOY

Dielectric Withstanding Voltage :

750VAC V

Termination Type :

Press Fit

Reliability :

COMMERCIAL

Contact Finish Thickness :

-

Contact Pattern :

RECTANGULAR

Reach Compliance Code :

Compliant

Contact Plating :

Gold Over Nickel

Terminal Pitch :

1.85 mm

Filter Feature :

No

Material Flammability Rating :

UL94 V-0

Number of Columns :

10

Number of Contact Rows :

10

Insulation Resistance :

10000000000 Ω

Gender :

HDR

Color :

Gray

Body Depth :

0.638 inch

Number of Circuits :

100

Mounting Style :

Through Hole

Material :

Stainless Steel

Mounting Option 1 :

Guide Pin

Number of Positions :

100

PCB Contact Row Spacing :

1.8288 mm

Body/Shell Style :

Receptacle

Contact Layout, Typical :

50 Differential Pairs

Product Length (mm) :

24.78(mm)

Features :

Shielded

Body Breadth :

1.22 inch

Pbfree Code :

yes

Type :

Backplane

Insulator Color :

Black

Current Rating (Max) :

1/Contact(A)

Manufacturer :

Molex

Number of Contacts :

100(POS)

Reference Standard :

UL

UL Flammability Code :

94V-0

PCB Contact Pattern :

RECTANGULAR

Plating Thickness :

30u inch

Polarization Key :

POLARIZED KEY

Option :

GENERAL PURPOSE

Durability :

250 Cycles

Contact Finish :

Gold

Withdrawl Force-Min :

.278 N

ECCN Code :

EAR99

Contact Gender :

Male

Connector Usage :

-

Number of Positions Loaded :

All

Operating Temperature :

-

Contact Resistance :

1 MΩ

Package :

Box

Voltage Rating Max :

120VDC/120VAC

Flammability Rating :

UL94 V-0

Packaging :

Tray

Max Voltage Rating (DC) :

120.12 kV

HTS Code :

8536.69.40.40

Product Height (mm) :

31.6(mm)

Orientation :

Vertical

Contact Resistance Max :

1(mohm)

Country of Origin :

US

Housing Color :

Gray

MIL Conformance :

No

Mounting Option 2 :

GUIDE SLOT

Mating Contact Pitch :

0.073 inch

Terminal Length :

0.091 inch

Mount :

Through Hole

Total Number of Contacts :

100

Number Of PCB Rows :

16

Manufacturer Lifecycle Status :

Obsolete (Last Updated: 2 years ago)

Product Status :

Active

Subcategory :

Headers and Edge Type Connectors

Additional Feature :

PANEL MOUNTABLE

Voltage Rating :

120V

Termination :

Through Hole

Shielding :

Shielded

Mating Contact Row Spacing :

0.073 inch

Current Rating :

1 A

RoHS :

Compliant

Termination Method :

Press Fit

Current Rating (Amps) :

-

Rated Current (Signal) :

1 A

Body Orientation :

Straight
