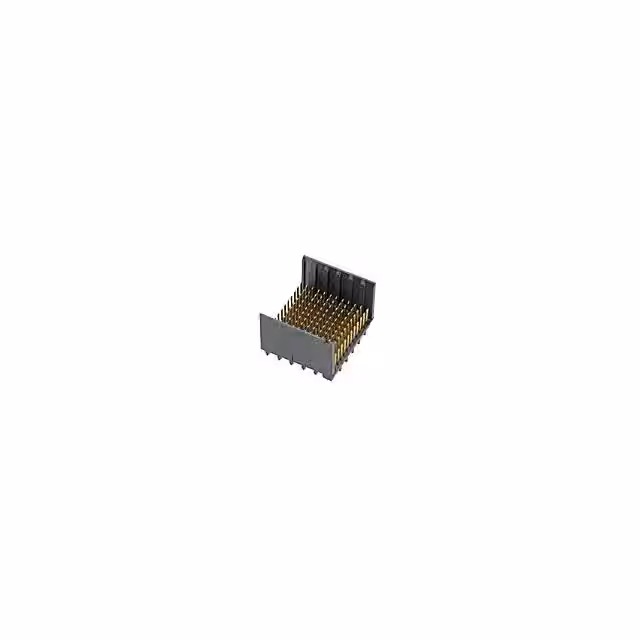

75705-1104

Manufacturer :

Molex

Product Category :

Specialized

Mounting Type :

BOARD

Color :

Black

Number of Positions :

220

Contact Resistance :

10 MΩ

Number of Rows :

11

Contact Resistance Max :

10(mohm)

Connector Usage :

-

Termination :

Press-Fit

Gender :

HDR

Number of Contact Rows :

11

Body Breadth :

0.976 inch

Product Length (mm) :

36.85(mm)

Operating Temperature :

-55°C ~ 80°C

Contact Material :

COPPER ALLOY

Type :

Backplane

Body Depth :

0.638 inch

Contact Finish Termination :

TIN OVER NICKEL

Mounting Option 1 :

LOCKING

Contact Finish :

Gold

Reach Compliance Code :

Compliant

Rated Current (Signal) :

1 A

Voltage Rating Max :

120VDC/120VAC

HTS Code :

8536.69.40.40

Plating Thickness :

30u inch

Connector Type :

BOARD CONNECTOR

Contact Style :

BLADE PIN-SKT

Number of Contacts :

220(POS)

Product Height (mm) :

16.2(mm)

Pitch :

-

Current Rating (Amps) :

-

Pitch (mm) :

3.7(mm)

Termination Method :

Press Fit

Reliability :

COMMERCIAL

Product Status :

Active

Package :

Box

Material Flammability Rating :

UL94 V-0

Reference Standard :

UL

Current Rating (Max) :

1/Contact(A)

Features :

-

PCB Contact Row Spacing :

.9906 mm

Voltage Rating :

120V

Terminal Length :

0.083 inch

Number Of PCB Rows :

22

Mounting Style :

Straight

Product Depth (mm) :

24.8(mm)

Body Orientation :

Straight

Number of Columns :

10

Insulation Resistance :

1000000000 Ω

Mating Contact Row Spacing :

0.072 inch

Durability :

200 Cycles

Contact Pattern :

RECTANGULAR

Contact Finish Thickness :

30.0µin (0.76µm)

Operating Temp Range :

-55C to 80C

Connector Style :

I-Trac

Dielectric Withstanding Voltage :

750VAC V

Polarization Key :

POLARIZED HOUSING

Series :

GbX I-Trac 75705

PCB Contact Pattern :

STAGGERED

Mating Contact Pitch :

0.145 inch

Termination Type :

Press Fit

Contact Plating :

Gold Over Nickel

Packaging :

Tray

Contact Layout, Typical :

-

Number of Positions Loaded :

All

Housing Color :

Black

ECCN Code :

EAR99
