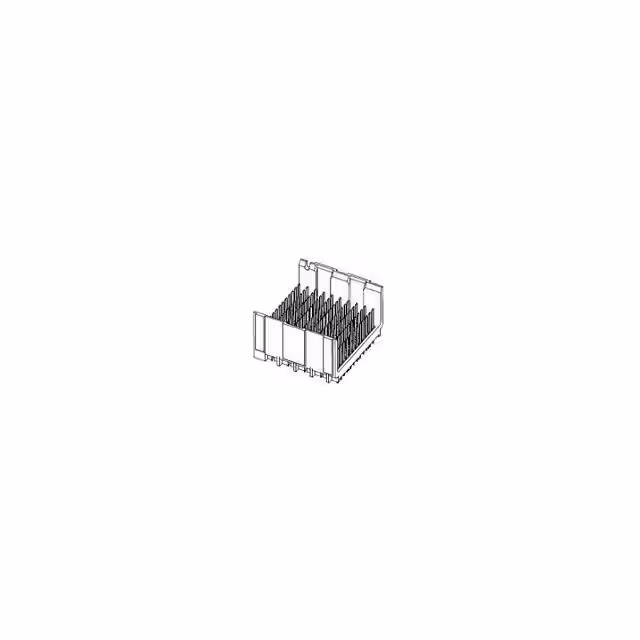

76155-1808

Manufacturer :

Molex

Product Category :

Specialized

Contact Gender :

Male

Current Rating (Max) :

0.75/Contact(A)

Number of Contacts :

96(POS)

Voltage Rating Max :

30VDC/30VAC

Termination Method :

Solder

Mounting Angle :

Vertical

Reliability :

COMMERCIAL

RoHS :

Details

Rated Current (Signal) :

0.75 A

Body Depth :

0.47 inch

PCB Contact Pattern :

RECTANGULAR

Durability :

200 Cycles

Pitch :

1.9 mm

ECCN Code :

EAR99

Connector Type :

Header, Male Pins

Contact Finish Thickness :

30.0µin (0.76µm)

Brand :

Molex

Minimum Operating Temperature :

- 55 C

Reach Compliance Code :

Compliant

Body Breadth :

0.819 inch

Contact Finish Termination :

TIN OVER NICKEL

Termination Style :

Press Fit

Mating Contact Pitch :

0.075 inch

Material Flammability Rating :

UL94 V-0

PCB Contact Row Spacing :

1.3462 mm

Insertion Force-Max :

.3336 N

Mounting Option 1 :

LOCKING

Mounting Type :

Through Hole

Features :

-

Manufacturer :

Molex

Termination Type :

Press Fit

Number Of PCB Rows :

12

Product :

Headers

Gender :

HDR

Housing Material :

Thermoplastic

Voltage Rating :

30 V

Number of Contact Rows :

12

Number of Columns :

8

Product Depth (mm) :

20.8(mm)

Number of Positions Loaded :

All

Packaging :

Tray

Product Length (mm) :

15.1(mm)

Operating Temp Range :

-55C to 85C

Package :

Tray

Product Height (mm) :

11.95(mm)

Terminal Length :

0.055 inch

Plating Thickness :

30u inch

Terminal Pitch :

1.905 mm

Product Status :

Active

Operating Temperature :

-55°C ~ 85°C

Contact Plating :

Gold

Subcategory :

Backplane Connectors

Housing Color :

Black

Color :

Black

Maximum Operating Temperature :

+ 85 C

Accessory Type :

-

Number of Positions :

96 Position

Contact Finish :

Gold

Connector Style :

Impact

Current Rating (Amps) :

-

Product Type :

High Speed / Modular Connectors

Dielectric Withstanding Voltage :

500VAC V

Number of Rows :

12 Row

Contact Resistance :

10 MΩ

Tradename :

Impact

Contact Layout, Typical :

32 Differential Pairs

Mating Contact Row Spacing :

0.053 inch

Termination :

Press-Fit

HTS Code :

8536.69.40.40

Series :

76155

Product Category :

High Speed / Modular Connectors

Pitch (mm) :

1.9(mm)

Connector Usage :

-

Contact Material :

Tin

Insulation Resistance :

1000000000 Ω

Contact Pattern :

RECTANGULAR

Body Orientation :

Straight

Total Number of Contacts :

96

Type :

Hard Metric

Reference Standard :

UL

Withdrawl Force-Min :

.14734 N

Current Rating :

750 mA

Mounting Style :

Through Hole
