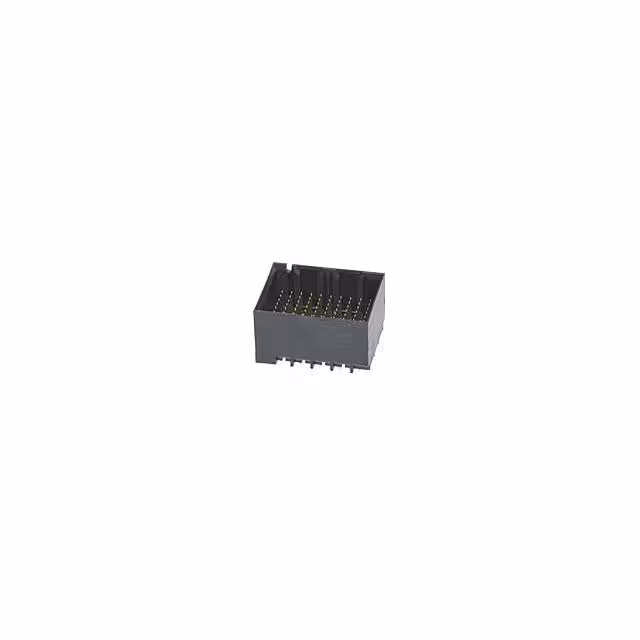

76165-1124

Manufacturer :

Molex

Product Category :

Specialized

Operating Temperature :

-55°C ~ 85°C

Termination :

Press-Fit

Number Of PCB Rows :

9

Contact Finish Termination :

Tin (Sn) - with Nickel (Ni) barrier

Insertion Force-Max :

.3336 N

Terminal Pitch :

1.905 mm

ECCN Code :

EAR99

Voltage Rating Max :

30VDC/30VAC

Body Breadth :

0.657 inch

Mounting Type :

Through Hole

RoHS :

Details

Housing Color :

Black

Polarization Key :

POLARIZED HOUSING

Minimum Operating Temperature :

- 55 C

Connector Style :

Impact

Terminal Length :

0.055 inch

Packaging :

Tray

Number of Contact Rows :

9

Mating Contact Pitch :

0.075 inch

Tradename :

Impact

Current Rating :

750 mA

Connector Usage :

-

Gender :

HDR

Product Length (mm) :

21.7(mm)

JESD-609 Code :

e3

Features :

-

Number of Columns :

10

Product Height (mm) :

11.95(mm)

Pitch (mm) :

1.9(mm)

Maximum Operating Temperature :

+ 85 C

Voltage Rating :

30 V

Body Orientation :

Straight

Current Rating (Max) :

0.75/Contact(A)

Product Status :

Active

Operating Temp Range :

-55C to 85C

Reference Standard :

UL

HTS Code :

8536.69.40.40

Contact Style :

SQ PIN-SKT

Product Depth (mm) :

16.7(mm)

Contact Resistance Max :

10(mohm)

Mounting Option 1 :

LOCKING

PCB Contact Pattern :

RECTANGULAR

Series :

76165

Contact Resistance :

10 MΩ

Plating Thickness :

30u inch

Contact Finish :

Gold

Mating Contact Row Spacing :

0.054 inch

Color :

Black

Reach Compliance Code :

Compliant

Body Depth :

0.47 inch

Number of Rows :

9 Row

Termination Type :

Press Fit

Type :

Backplane

Termination Method :

Press Fit

Number of Positions Loaded :

All

PCB Contact Row Spacing :

1.3462 mm

Mounting Angle :

Vertical

Insulator Color :

Black

Connector Type :

Header, Male Pins

Reliability :

COMMERCIAL

Material Flammability Rating :

UL94 V-0

Contact Gender :

Male

Rated Current (Signal) :

0.75 A

Withdrawl Force-Min :

.139 N

Contact Layout, Typical :

30 Differential Pairs

Number of Contacts :

90(POS)

Number of Positions :

90 Position

Current Rating (Amps) :

-

Termination Style :

Through Hole

Contact Plating :

Gold

Contact Material :

Tin

Mounting Style :

Through Hole

Durability :

200 Cycles

Body/Shell Style :

Receptacle

Package :

Box

Contact Finish Thickness :

30.0µin (0.76µm)

Total Number of Contacts :

90

Pitch :

1.9 mm

Contact Pattern :

RECTANGULAR
