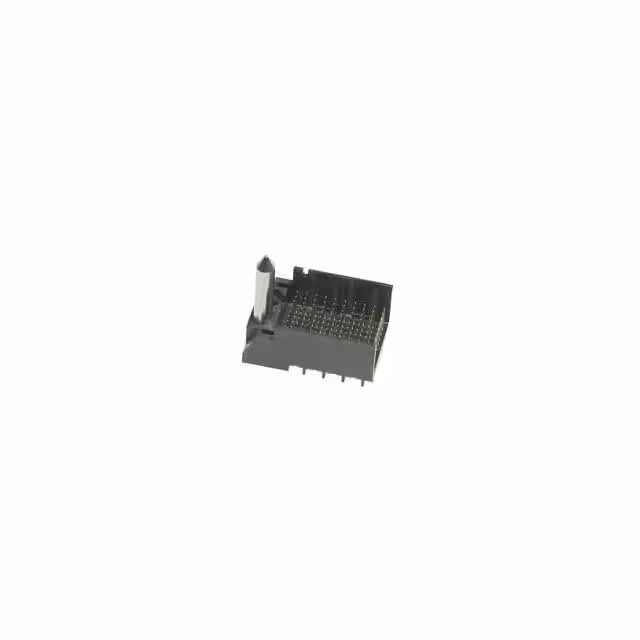

76165-3108

Manufacturer :

Molex

Product Category :

Specialized

Type :

Backplane

Package :

Box

Number of Rows :

9 Row

Termination Style :

Press Fit

Product :

Headers

Packaging :

Tray

Contact Layout, Typical :

30 Differential Pairs

Product Status :

Active

Material Flammability Rating :

UL94 V-0

Series :

76165

Contact Gender :

Male

Mounting Style :

Through Hole

Connector Type :

Header, Male Pins

Termination Type :

Solder

Contact Finish Thickness :

30.0µin (0.76µm)

Pitch :

1.9 mm

Mixed Contacts :

No

Current Rating (Amps) :

-

Product Depth (mm) :

16.7(mm)

Tradename :

Impact

Voltage Rating :

30 V

Current Rating :

750 mA

Number of Positions Loaded :

All

Body Orientation :

Straight

Connector Usage :

-

Connector Style :

Impact, Guide Left

Additional Feature :

Impact

Reach Compliance Code :

Compliant

Pitch (mm) :

1.9(mm)

Termination Method :

Press Fit

IEC Conformance :

No

Number of Positions :

90 Position

Gender :

HDR

Operating Temperature :

-55°C ~ 85°C

RoHS :

Details

Features :

-

Product Length (mm) :

25.5(mm)

Accessory Type :

-

Termination :

Press-Fit

Operating Temp Range :

-55C to 85C

MIL Conformance :

No

Contact Plating :

Gold

Number of Contact Rows :

9

Housing Color :

Black

Pbfree Code :

yes

Number of Columns :

10

Terminal Pitch :

1.9 mm

Mounting Type :

Through Hole

Maximum Operating Temperature :

+ 85 C

Mounting Angle :

Vertical

Contact Material :

Tin

Contact Resistance Max :

10(mohm)

Filter Feature :

No

Number of Contacts :

90(POS)

Color :

Black

Product Height (mm) :

11.95(mm)

Minimum Operating Temperature :

- 55 C

DIN Conformance :

No

Voltage Rating Max :

30VDC/30VAC

Current Rating (Max) :

0.75/Contact(A)

Contact Finish :

Gold

Option :

GENERAL PURPOSE
