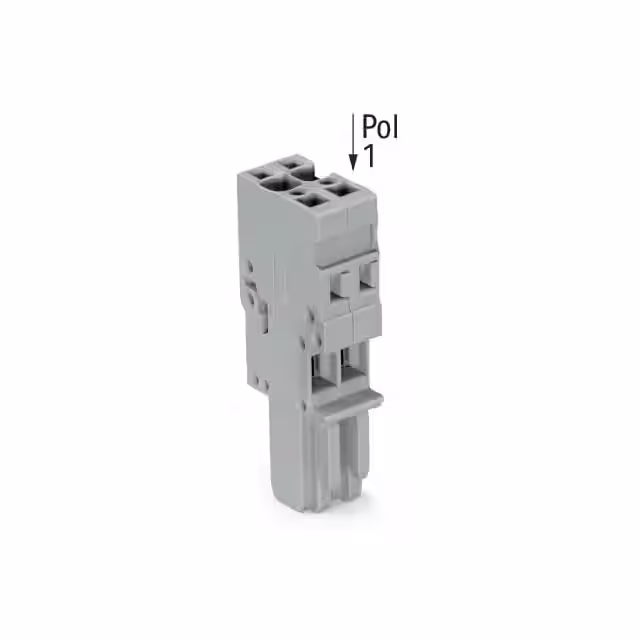

769-102

Manufacturer :

WAGO

Product Category :

Headers, Plugs and Sockets

Wire Type :

Solid Wire;Stranded Wire

Body Orientation :

Straight

Material Flammability Rating :

UL94 V-0

Product Height (mm) :

45.2(mm)

Screw Size :

-

Housing Color :

Gray

Rad Hardened :

No

Height :

18.3

Wire Gauge :

12-28(AWG)

Insulation Height :

0.720 (18.29mm)

Type :

Terminal Block

Torque - Screw :

-

Number of Positions :

2

Housing Material :

Polyamide 6/6

Product Status :

Active

Voltage - IEC :

500 V

Ingress Protection :

-

Header Orientation :

-

Contact Mating Finish :

-

Rated current In :

32

Wire Strip Length :

8-9mm

Positions Per Level :

2

Number of Poles :

2

Connectable conductor cross section multi-wired :

0.08 - 4

Inflammability class of insulation material according to with UL94 :

V0

Connectable conductor cross section fine-strand without cable end sleeve :

0.08 - 4

Color :

Gray

Contact Material :

Copper

Current Rating (Max) :

32(A)

Termination Style :

Screwless - Push-In Spring

Manufacturer :

Wago

Depth :

45.2

Approvals :

CCA;CSA;UL

Number of Ports :

2

Connectable conductor cross section fine-strand with cable end sleeve :

0.25 - 2.5

RoHS :

Compliant

Operating Temperature :

-

Lead Free :

Lead Free

Mounting Type :

Free Hanging (In-Line)

For Use With :

WAGO X-COM® System Carrier Terminal Block

Packaging :

Box

Flammability Rating :

UL94 V-0

Features :

Retention Latches (Non-Wire Side)

Pitch :

0.197 (5.00mm)

Contact Tail Length :

-

Number of Contacts :

2(POS)

Product Length (mm) :

10(mm)

Wire Gauge or Range - mm² :

0.08-2.5mm²

Transparent :

No

Package :

Box

Number of Contact Rows :

1

Mounting Style :

CABLE

Plug Wire Entry :

180°

Series :

769

Connectable conductor cross section solid-core :

0.08 - 4

Number of Levels :

1 (Mate), 2 (Input)

Product Depth (mm) :

18.3(mm)

Operating Voltage (Max) :

500V

Wire Gauge or Range - AWG :

12-28 AWG

Accessory Type :

Female Plug

Length :

18.3

Width :

10

Gender :

F

Current - IEC :

32A
