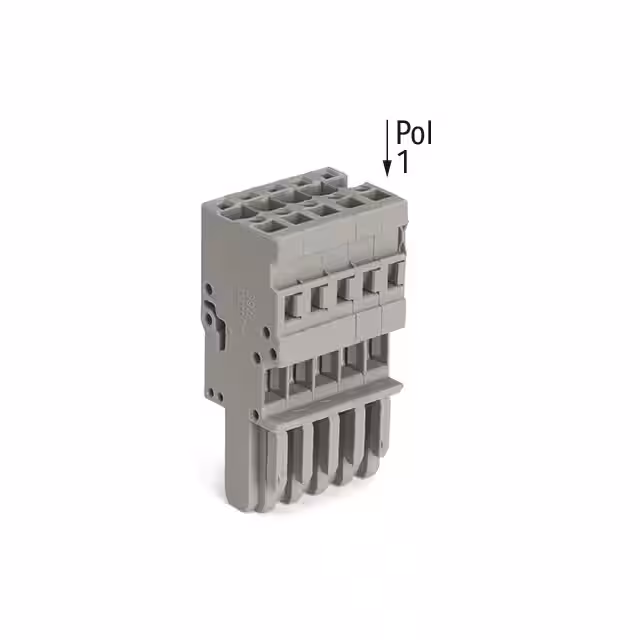

769-103

Manufacturer :

WAGO

Product Category :

Headers, Plugs and Sockets

Termination Style :

Screwless - Push-In Spring

Type :

Terminal Block

Product Length (mm) :

15(mm)

For Use With :

WAGO X-COM® System Carrier Terminal Block

Wire Type :

Solid Wire;Stranded Wire

Contact Material :

Copper

Voltage - IEC :

500 V

Wire Gauge (Min) :

28 AWG

Number of Contact Rows :

1

Rated Voltage :

500V

Wire Gauge :

12-28(AWG)

Mounting Style :

CABLE

Positions Per Level :

3

Insulation Height :

0.720 (18.29mm)

Number of Contacts :

3(POS)

RoHS :

Compliant

Mounting Type :

Free Hanging (In-Line)

Package :

Box

Number of Poles :

3

Product Height (mm) :

45.2(mm)

Wire Strip Length :

8-9mm

Rad Hardened :

No

Housing Material :

Polyamide 6/6

Body Orientation :

Straight

Contact Pitch (mm) :

Not Required(mm)

Features :

Retention Latches (Non-Wire Side)

Operating Voltage (Max) :

500V

Wire Gauge (Max) :

12 AWG

Number of Positions :

3

Accessory Type :

Female Plug

Approvals :

CCA;CSA;UL

Material Flammability Rating :

UL94 V-0

Contact Mating Finish :

-

Operating Temperature :

-

Number of Levels :

1 (Mate), 2 (Input)

Header Orientation :

-

Wire Gauge or Range - AWG :

12-28 AWG

Contact Tail Length :

-

Lead Free :

Lead Free

Rated Current :

32A

Product Status :

Active

Product Depth (mm) :

18.3(mm)

Screw Size :

-

Current - IEC :

32A

Termination :

Cage Clamp

Wire Gauge or Range - mm² :

0.08-2.5mm²

Packaging :

Box

Current Rating (Max) :

32(A)

Flammability Rating :

UL94 V-0

Number of Ports :

3

Gender :

F

Torque - Screw :

-

Color :

Gray

Ingress Protection :

-

Housing Color :

Gray

Plug Wire Entry :

180°

Manufacturer :

Wago

Series :

769

Pitch :

0.197 (5.00mm)
