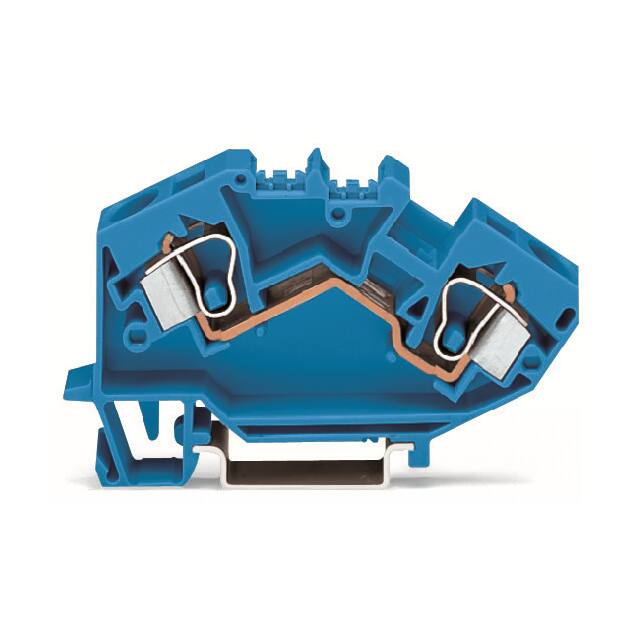

784-604

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

Mount :

CABLE

Number of Positions :

2

RoHS :

Compliant

Termination :

Crimp

Features :

-

Rated current In :

57

Voltage - IEC :

1000V

Height :

82.5

Depth :

43.5

Terminal - Width :

10.0mm

Fuse Type :

-

Color :

Blue

Number of Levels :

1

Series :

TOPJOB®S

Approvals :

CSA, UR

Voltage - UL :

-

Product Status :

Active

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Number of Circuits :

1

Radiation Hardening :

No

Connectable conductor cross section fine-strand without cable end sleeve :

0.2 - 10

Connectable conductor cross section multi-wired :

0.2 - 10

Number of Contacts :

6

Connectable conductor cross section solid-core :

0.2 - 10

Termination Style :

Push In, Spring

Width :

10

Inflammability class of insulation material according to with UL94 :

V0

Wire Gauge or Range - mm² :

0.2-10mm²

Wire Gauge or Range - AWG :

8-24 AWG

Manufacturer :

Wago

Type :

Standard Block

Package :

Box

Orientation :

Straight

Stripping Length :

12mm ~ 13mm

Gender :

FEMALE

Mounting Type :

DIN Rail

Material Flammability Rating :

UL94 V-0

Current - IEC :

57 A

Length :

82.5

Packaging :

Bulk

Disconnect Type :

-
