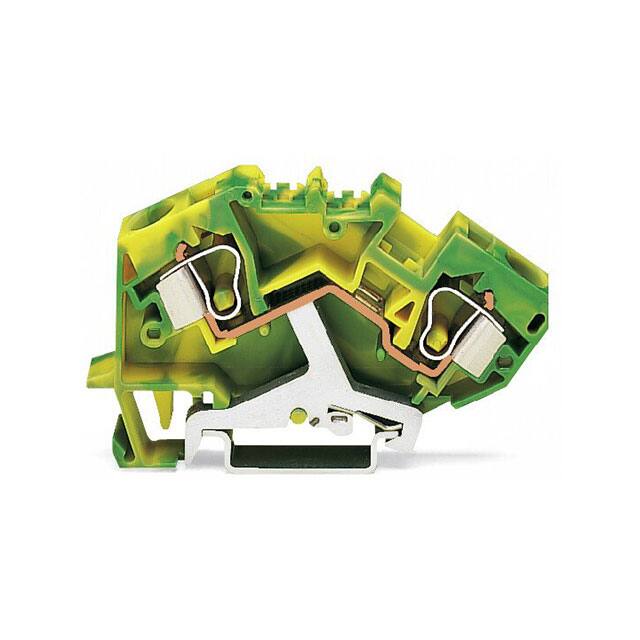

784-607

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

Features :

-

Series :

TOPJOB®S

Color :

Green, Yellow

Connectable conductor cross section fine-strand without cable end sleeve :

0.2 - 10

Width :

10

Type :

Grounding Block

Number of Positions :

2

Manufacturer :

Wago

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Mounting Type :

DIN Rail

Number of Circuits :

1

Stripping Length :

12mm ~ 13mm

Terminal - Width :

10.0mm

Voltage - UL :

-

RoHS :

yes

Length :

82.5

Product Status :

Active

Flammability Rating :

UL94 V-0

Voltage - IEC :

-

Wire Gauge or Range - mm² :

0.2-10mm²

Fuse Type :

-

Approvals :

CSA, UR

Inflammability class of insulation material according to with UL94 :

V0

Number of Levels :

1

Depth :

43.5

Termination Style :

Push In, Spring

Package :

Box

Material Flammability Rating :

UL94 V-0

Disconnect Type :

-

Wire Gauge or Range - AWG :

8-24 AWG

Connectable conductor cross section solid-core :

0.2 - 10

Connectable conductor cross section multi-wired :

0.2 - 10

Height :

82.5
