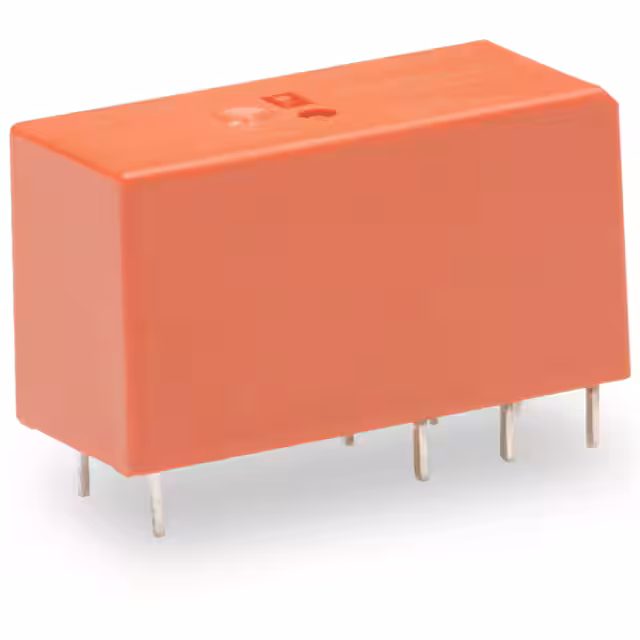

788-172

Manufacturer :

WAGO

Product Category :

Power Relays, Over 2 Amps

Termination Style :

PC Pin

Contacts :

DPDT

Number of contacts as normally open contact :

0

Material of contact surface :

Silver

Contact Rating (Current) :

8 A

Product Status :

Active

Width :

12.7

Degree of protection (IP) :

IP20

Operating Temperature :

-40° ~ 70°C

Rated control supply voltage at AC 60 Hz :

24 - 24

Voltage type for actuating :

AC

Release Time :

6 ms

Series :

788

Contact Form :

DPDT (2 Form C)

With detachable clamps :

No

Rated control supply voltage at AC 50 Hz :

24 - 24

Package :

Box

Termination :

Socket

Contact Material :

Silver Nickel (AgNi)

Coil Voltage :

24VAC

Operate Time :

8 ms

Manufacturer :

Wago

Depth :

29

Mounting :

Plug In

Nominal current :

8

Number of contacts as change-over contact :

2

Number of contacts as normally closed contact :

0

Relay Type :

GENERAL PURPOSE

Type of electric connection :

Plug-in connection

Switching Voltage :

250VAC - Max

Enclosure :

Plastic

Mounting Type :

Through Hole

RoHS :

yes

Height :

15.7
