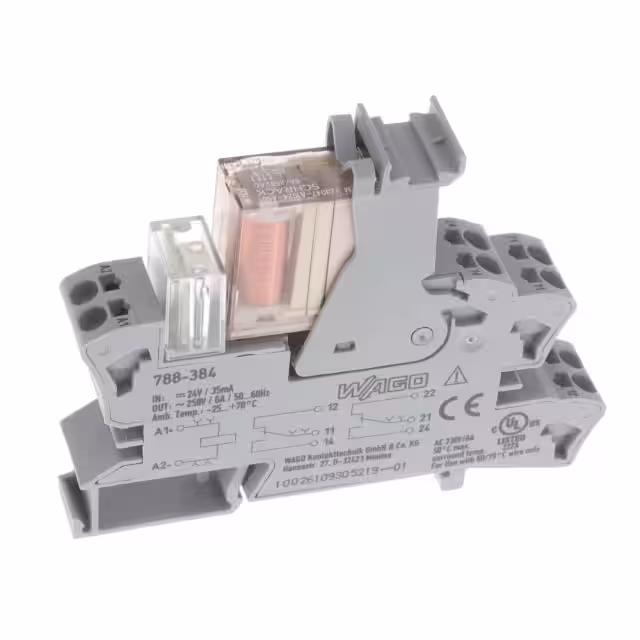

788-384

Manufacturer :

WAGO

Product Category :

Power Relays, Over 2 Amps

Number of contacts as normally closed contact :

0

Release Time :

4 ms

Type of electric connection :

Spring clamp connection

Length :

15mm

Durability :

30 x 106 Switching operations

Contact Rating (Current) :

6 A

Must Operate Voltage :

20.4 VDC

Terminal Type :

Cage Clamp

Operating Temperature :

-40°C ~ 70°C

Features :

Lighted Indicator

Coil Current :

31 mA

Nominal current (details) :

6A

Switching voltage (max.) :

250V AC

Auxiliary Contacts :

2

Height :

64mm

Relay Type :

GENERAL PURPOSE

Termination Style :

Spring Terminal

Coil Insulation :

-

Rated control supply voltage at DC :

24 - 24

Switching current (max.) :

6A

Product Status :

Active

Material of contact surface :

Nickel

Contact Form :

DPDT (2 Form C)

Voltage type for actuating :

DC

Content :

1pc(s)

Dim :

(W x H x D) 15 x 64 x 86 mm

Contact Material :

Silver Nickel (AgNi)

Nominal current :

6

Width :

15mm

Coil Resistance :

774.2 Ohms

Nominal voltage (details) :

24V dc

Degree of protection (IP) :

IP20

Operate Time :

10 ms

Series :

-

Package :

Bulk

Coil Type :

Non Latching

Supply Voltage :

24V dc

Must Release Voltage :

-

Base Product Number :

788

Mounting Type :

DIN Rail

Number of contacts as change-over contact :

2

Coil Voltage :

24VDC

Number of contacts as normally open contact :

0

Seal Rating :

-

Type :

788-384

Ambient temperature :

-25 - +50°C

Depth :

86mm

Switching Voltage :

250VAC - Max

With detachable clamps :

No
