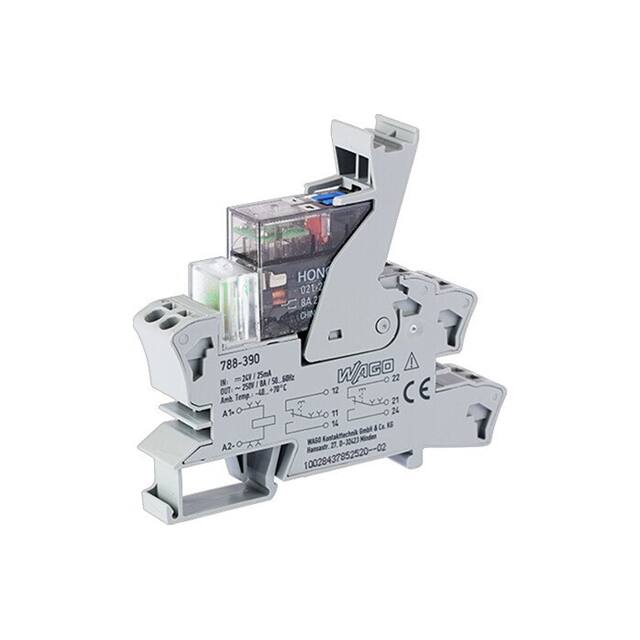

788-390

Manufacturer :

WAGO

Product Category :

Power Relays, Over 2 Amps

Depth :

86

Maximum Operating Temperature :

+70°C

Width :

15

With detachable clamps :

No

Minimum Operating Temperature :

-40°C

Package :

Box

Release Time :

8 ms

Contact Configuration :

DPDT

Length :

15 mm

Number of contacts as change-over contact :

2

Number of Poles :

2

Series :

788

Rated control supply voltage at DC :

24 - 24

Relay Type :

GENERAL PURPOSE

Product Status :

Active

Nominal current :

3

Type of electric connection :

Spring clamp connection

Operating Temperature :

-40° ~ 70°C

Voltage type for actuating :

DC

Switching Voltage :

250VAC

Contact Material :

Silver Nickel (AgNi)

Contact Rating (Current) :

8 A

Number of contacts as normally closed contact :

0

Operate Time :

15 ms

Termination Style :

Spring Terminal

Coil Voltage :

24VDC

Contact Form :

DPDT (2 Form C)

Height :

73

Terminal Type :

Cage Clamp

Mounting Type :

DIN Rail

Degree of protection (IP) :

IP20

Number of contacts as normally open contact :

0

Special Features :

IP20 Degree of Protection, LED Indication, Mechanical Indication

Material of contact surface :

Nickel
