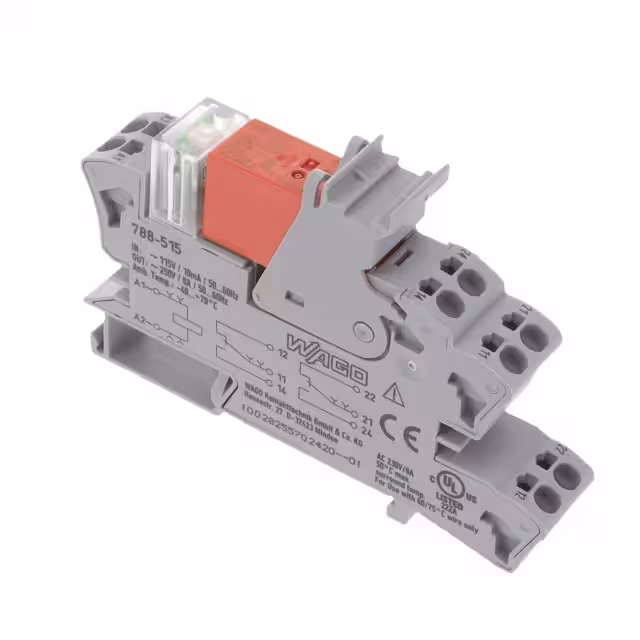

788-515
Or copy the link below:
- Mfr.Part #
- 788-515
- Manufacturer
- WAGO
- Package / Case
- Datasheet
- Download
- Description
- RELAY GEN PURPOSE DPDT 8A 115V
- Stock
- 21
- In Stock ：
- 21
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- WAGO
- Product Category :
- Power Relays, Over 2 Amps
- Release Time :
- 35 ms
- Coil Voltage AC :
- 115
- Package :
- Bulk
- Series :
- -
- Type :
- SWITCHING RELAY
- Contact Arrangement :
- DPDT
- Termination Style :
- Spring Terminal
- Current Rating :
- 8 A
- Contact Form :
- DPDT (2 Form C)
- Operating Temp Range :
- -25C to 50C
- Features :
- Lighted Indicator
- Throw Configuration :
- DPDT
- Rad Hardened :
- No
- Mounting Type :
- DIN Rail
- LED Indicator :
- yes
- Lead Free :
- Lead Free
- Maximum Power Rating :
- 2KVA
- Must Release Voltage :
- -
- Coil Suppression Diode :
- yes
- Seal :
- Unsealed
- Seal Rating :
- -
- Contact Current Rating :
- 8 A
- Manufacturer :
- Wago
- Coil Type :
- Non Latching
- Contact Configuration :
- DPDT
- Product Length (mm) :
- 86(mm)
- Must Operate Voltage :
- 103.5 VAC
- Relay Construction :
- Non-Latching
- Pin Count :
- 8
- Operating Temperature :
- -40°C ~ 70°C
- Base Product Number :
- 788
- Product Depth (mm) :
- 15(mm)
- Coil Voltage :
- 115VAC
- Height :
- 54 mm
- Coil Resistance :
- 14.4 kOhms
- Contact Material :
- Silver Nickel (AgNi)
- Product Status :
- Active
- Relay Type :
- GENERAL PURPOSE
- Voltage Rating (VAC) :
- 250(V)
- Contact Rating (Current) :
- 8 A
- RoHS :
- Compliant
- Switching Voltage :
- 250VAC - Max
- REACH SVHC :
- No SVHC
- Contact Current :
- 8A
- Coil Current :
- 8 mA
- Mounting Style :
- DIN Rail
- Ratings :
- IP20
- Packaging :
- Box
- Operate Time :
- 10 ms
- Product Height (mm) :
- 54(mm)
- Width :
- 15 mm
- Coil Insulation :
- -
- Coil Voltage (AC) :
- 115 V
- Datasheets
- 788-515
788-515 datasheet pdf and Power Relays, Over 2 Amps product details from WAGO Corporation stock available at
