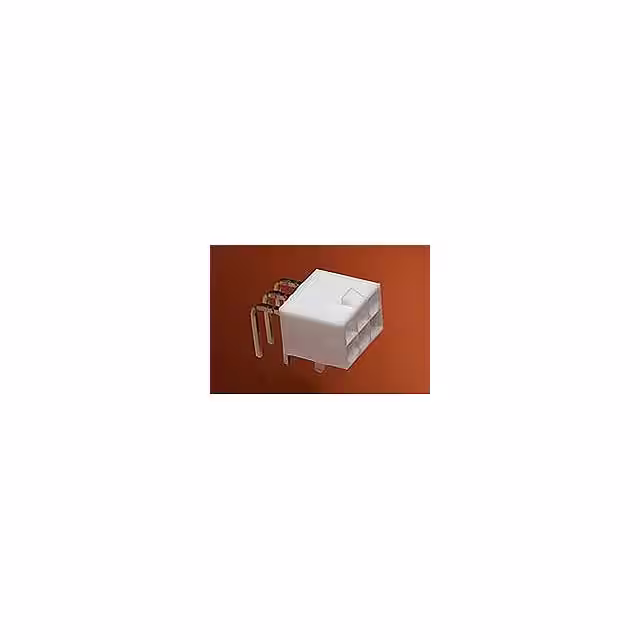

87427-0403

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Product Depth (mm) :

19.4(mm)

Shell Material :

POLYAMIDE46

Operating Temperature Max Deg. C :

105C

Filter Feature :

No

PCB Contact Pattern :

RECTANGULAR

Empty Shell :

No

Contact Pattern :

RECTANGULAR

Reliability :

COMMERCIAL

Body Depth :

0.72 inch

Gender :

HDR

Contact Material :

Brass

Operating Temperature Min Deg. C :

-40C

Current Rating (Max) :

13/Contact(A)

Mating Contact Row Spacing :

0.165 inch

ECCN Code :

EAR99

Additional Feature :

Mini-Fit Jr

Insulation Resistance :

1000000000 Ω

Terminal Pitch :

4.191 mm

Body Orientation :

RIGHT ANGLE

Mixed Contacts :

No

DIN Conformance :

No

Operating Temp Range :

-40C to 105C

Terminal Length :

0.138 inch

Mounting Option 1 :

POLARIZED LCK

Housing Material :

Nylon 4/6

Durability :

30 Cycles

Manufacturer :

Molex

Product Length (mm) :

10.8(mm)

Mounting Style :

Through Hole

Series :

*

UL Flammability Code :

94V-0

Insertion Force-Max :

6.672 N

Termination Type :

Solder

Contact Gender :

Male

Insulator Color :

Beige

Option :

GENERAL PURPOSE

Contact Style :

SQ PIN-SKT

Pitch (mm) :

4.2(mm)

Rated Current (Signal) :

9 A

Reference Standard :

CSA,UL,VDE

PCB Contact Row Spacing :

5.5118 mm

Package :

Box

Mating Contact Pitch :

0.165 inch

MIL Conformance :

No

Mounting Option 2 :

LOCKING

Product Height (mm) :

11.4(mm)

Number of Ports :

1(Port)

JESD-609 Code :

e3

Number of Terminals :

4

Product Status :

Active

Subcategory :

Headers and Edge Type Connectors

Termination Method :

Solder

Contact Finish Termination :

TIN (394) OVER COPPER (315)

Product Diameter (mm) :

Not Required(mm)

Body/Shell Style :

Receptacle

Total Number of Contacts :

4

Contact Resistance :

10 MΩ

Mounting Type :

BOARD

Withdrawl Force-Min :

3.0024 N

Voltage Rating Max :

600V

Connector Type :

RECTANGULAR POWER CONNECTOR

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Body Breadth :

0.449 inch

Number of Contacts :

4(POS)

Reach Compliance Code :

Compliant

Polarization Key :

POLAR PIN POSITION

Contact Plating :

TIN OVER COPPER

IEC Conformance :

No

Packaging :

Tray

Type :

Power

HTS Code :

8536.69.40.30

Number Of PCB Rows :

2

Dielectric Withstanding Voltage :

1500VAC V
