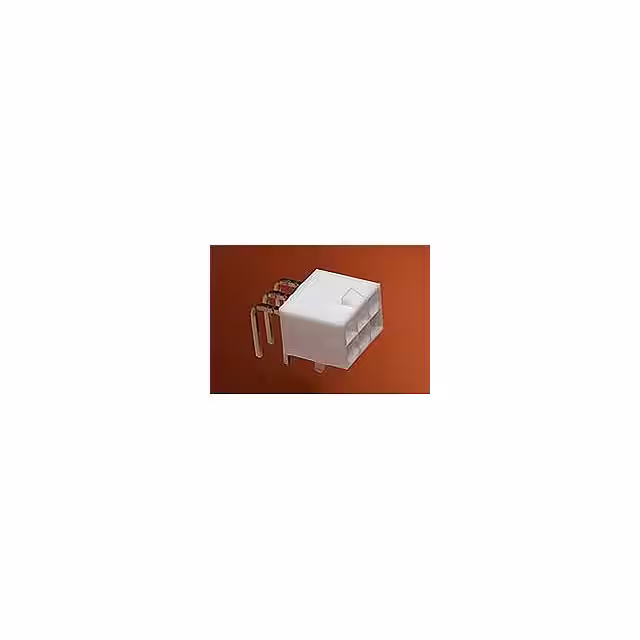

87427-0603

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Product Height (mm) :

11.4(mm)

Current Rating (Max) :

13/Contact(A)

UL Flammability Code :

94V-0

Product Depth (mm) :

19.4(mm)

Product Status :

Active

Type :

Wire to Board

Durability :

30 Cycles

Withdrawl Force-Min :

3.0024 N

Number of Circuits :

6

Contact Pattern :

RECTANGULAR

JESD-609 Code :

e3

Manufacturer :

Molex

Contact Plating :

TIN OVER NICKEL

Additional Feature :

Mini-Fit Jr

Contact Finish Termination :

TIN (394) OVER COPPER (315)

Empty Shell :

No

Subcategory :

Headers and Edge Type Connectors

Contact Resistance :

10 MΩ

Voltage Rating :

600 V

Body Orientation :

RIGHT ANGLE

Insulation Resistance :

1000000000 Ω

Insertion Force-Max :

6.672 N

Number of Positions :

6

Current Rating :

8 A

Termination Method :

Solder

Number Of PCB Rows :

2

Contact Gender :

Male

Country of Origin :

In

Number of Ports :

1(Port)

Min Operating Temperature :

-40 °C

Mounting Option 2 :

LOCKING

Manufacturer Lifecycle Status :

Obsolete (Last Updated: 2 years ago)

Connector System :

Wire to Board

Number of Rows :

2

Insulator Color :

Beige

IEC Conformance :

No

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Terminal Pitch :

4.191 mm

Packaging :

Tray

Max Operating Temperature :

105 °C

Rated Current (Signal) :

9 A

Series :

Mini-Fit Jr.

Operating Temperature Max Deg. C :

105C

Gender :

HDR

PCB Contact Row Spacing :

5.5118 mm

Termination Type :

Solder

Number of Terminals :

6

Total Number of Contacts :

6

Filter Feature :

No

Number of Contacts :

6Power(POS)

Mounting Type :

Through Hole

Lifecycle Status :

Obsolete (Last Updated: 2 years ago)

Operating Temperature Min Deg. C :

-40C

Orientation :

RIGHT ANGLE

Pitch (mm) :

4.2(mm)

Contact Style :

SQ PIN-SKT

Contact Material :

Brass

Shell Material :

POLYAMIDE46

ECCN Code :

EAR99

Product Length (mm) :

15(mm)

Mixed Contacts :

No

Operating Temp Range :

-40C to 105C

Body/Shell Style :

Receptacle

Reference Standard :

CSA,UL,VDE

Dielectric Withstanding Voltage :

1500VAC V

Package :

Box

Termination :

Through Hole

Body Breadth :

0.449 inch

Terminal Length :

0.138 inch

Body Depth :

0.72 inch

Mounting Style :

Through Hole

REACH SVHC :

Unknown

Reliability :

COMMERCIAL

MIL Conformance :

No

Connector Type :

RECTANGULAR POWER CONNECTOR

HTS Code :

8536.69.40.30

Housing Material :

Nylon

Mating Contact Row Spacing :

0.165 inch

Plating :

Tin

Polarization Key :

POLAR PIN POSITION

Pitch :

4.2 mm

Mounting Option 1 :

POLARIZED LCK

Voltage Rating Max :

600V

Row Spacing :

4.2 mm

DIN Conformance :

No

Reach Compliance Code :

Compliant

RoHS :

Compliant

Mating Contact Pitch :

0.165 inch

Product Diameter (mm) :

Not Required(mm)

Mount :

Through Hole

PCB Contact Pattern :

RECTANGULAR

Glow Wire Compliant :

Non-Compliant

Option :

GENERAL PURPOSE
