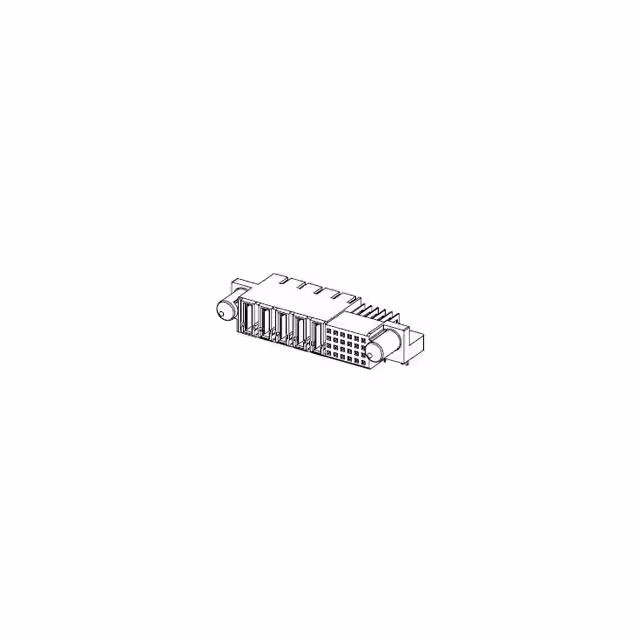

87668-2004
Or copy the link below:
- Mfr.Part #
- 87668-2004
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- 6.35MM PITCH, POWER, 2.54MM PITC
- Stock
- 6
- In Stock ：
- 6
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Specialized
- Body/Shell Style :
- Receptacle
- Operating Temperature Max Deg. C :
- 105C
- Contact Material :
- Tin
- Contact Style :
- Hybrid
- Number of Positions :
- 30 Position
- Mounting Style :
- Through Hole
- Contact Finish :
- Gold
- Connector Type :
- Receptacle, Female Sockets and Blade Sockets
- Insulation Resistance :
- 5000000000 Ω
- Series :
- 87668
- Operating Temp Range :
- -20C to 105C
- Body Breadth :
- 0.476 inch
- Mounting Angle :
- RIGHT ANGLE
- Voltage Rating :
- 50 V
- Mixed Contacts :
- yes
- Gender :
- RCP
- Manufacturer :
- Molex
- Minimum Operating Temperature :
- - 20 C
- Termination Style :
- Through Hole
- Brand :
- Molex
- Contact Arrangement :
- S24P6
- Board Mounting Option :
- SPLIT BOARD LOCK
- Number of Columns :
- -
- Current Rating :
- 30 A
- Tradename :
- EXTreme PowerPlus
- Number of Ports :
- 1(Port)
- Product Status :
- Active
- Terminal Length :
- 0.135 inch
- Product Depth (mm) :
- 25.15(mm)
- Withdrawl Force-Min :
- .0973 N
- Contact Resistance :
- 20 mΩ
- Contact Finish Termination :
- TIN OVER NICKEL
- Mounting Type :
- Board Edge, Through Hole, Right Angle
- Number of Rows :
- 4 Row
- Total Number of Contacts :
- 30
- Reliability :
- COMMERCIAL
- Operating Temperature Min Deg. C :
- -20C
- Body Depth :
- 0.99 inch
- Pitch (mm) :
- 2.54(mm)
- Contact Plating :
- Gold
- Color :
- Black
- Durability :
- 100 Cycles
- Number of Contacts :
- 6Power/24Signal(POS)
- Contact Gender :
- Male
- Features :
- Board Lock, Guide Pin
- Connector Style :
- -
- RoHS :
- Details
- Housing Color :
- Black
- Current Rating (Max) :
- (30/2.5)/CONTACT(A)
- Contact Layout, Typical :
- 24 Signal, 6 Power
- Insulator Color :
- Black
- Subcategory :
- Power Connectors
- Product Category :
- Power to the Board
- Reach Compliance Code :
- Unknown
- Termination :
- Solder
- Operating Temperature :
- -20°C ~ 105°C
- Voltage Rating Max :
- 50VDC
- Maximum Operating Temperature :
- + 105 C
- Package :
- Box
- Contact Finish Thickness :
- 30.0µin (0.76µm)
- Body Orientation :
- RIGHT ANGLE
- Product Length (mm) :
- 69.85(mm)
- Dielectric Withstanding Voltage :
- 3600VAC V
- Current Rating (Amps) :
- -
- Number of Terminals :
- 30
- Termination Method :
- Solder
- Housing Material :
- Thermoplastic
- Insertion Force-Max :
- .973 N
- Product Type :
- Power to the Board
- Plating Thickness :
- 30u inch
- Material Flammability Rating :
- UL94 V-0
- Product Diameter (mm) :
- Not Required(mm)
- Type :
- Power
- Product Height (mm) :
- 12.09(mm)
- Reference Standard :
- UL,CSA,TUV
- Additional Feature :
- RoHS Compliant
- Pitch :
- 6.35 mm
- Connector Usage :
- -
- Termination Type :
- Solder
- Rated Current (Signal) :
- 2.5 A
- Packaging :
- Tray
- Number of Positions Loaded :
- All
- Datasheets
- 87668-2004
