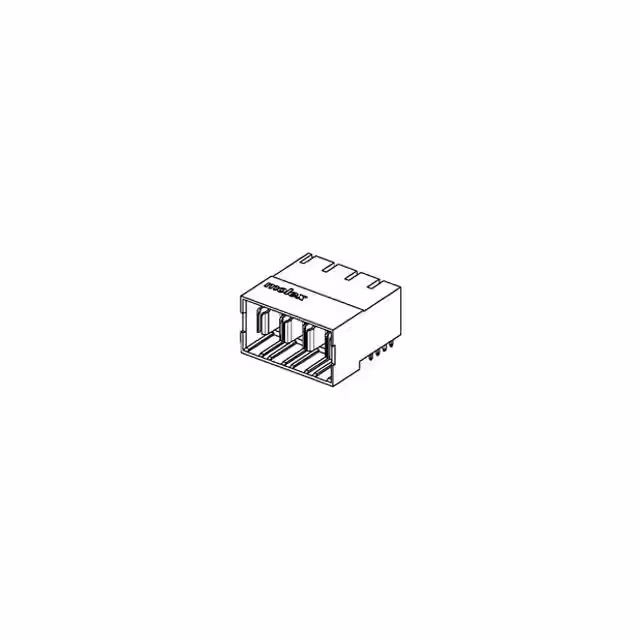

87684-2001

Manufacturer :

Molex

Product Category :

Specialized

Min Operating Temperature :

-20 °C

Features :

-

Body Orientation :

RIGHT ANGLE

Mount :

Through Hole

Body/Shell Style :

Receptacle

RoHS :

Compliant

Color :

Black

Type :

Power

Operating Temperature Max Deg. C :

70C

Number of Rows :

1

Reliability :

COMMERCIAL

Number of Circuits :

2

Packaging :

Tray

Number of Positions :

2

DIN Conformance :

No

Pbfree Code :

yes

Contact Gender :

Male

Pitch (mm) :

6.35(mm)

Filter Feature :

No

Material Flammability Rating :

UL94 V-0

Current Rating (Max) :

30/Contact(A)

Voltage Rating (DC) :

50 V

Insulation Resistance :

20000000000 Ω

Mounting Option 1 :

LOCKING

Plating Thickness :

30u inch

Country of Origin :

SG

Voltage Rating Max :

50VDC

Contact Resistance :

20 mΩ

Contact Material :

COPPER ALLOY

Halogen Free :

Low Halogen

Number of Columns :

-

Insertion Force-Max :

6.672 N

Max Voltage Rating (DC) :

50 V

Product Height (mm) :

14.58(mm)

MIL Conformance :

No

Orientation :

RIGHT ANGLE

Housing Material :

Thermoplastic

JESD-609 Code :

e3

Manufacturer Lifecycle Status :

Obsolete (Last Updated: 2 years ago)

Lifecycle Status :

Obsolete (Last Updated: 2 years ago)

Pitch :

6.35 mm

Series :

EXTreme PowerPlus 87684

Number of Positions Loaded :

All

Additional Feature :

RoHS Compliant

Contact Arrangement :

S0P2

Option :

GENERAL PURPOSE

Number of Terminals :

16

Current Rating (Amps) :

-

Connector Style :

Power

Withdrawl Force-Min :

2.224 N

Number of Ports :

1(Port)

Insulator Color :

Black

Contact Finish :

Gold

Connector Type :

Header, Male Blades

Shell Material :

GLASS FILLED POLYETHYLENE

Product Diameter (mm) :

Not Required(mm)

Contact Finish Termination :

Tin (Sn)

Product Depth (mm) :

25.25(mm)

Reach Compliance Code :

Compliant

Contact Layout, Typical :

2 Power

Package :

Box

Connector Usage :

-

Body Depth :

0.994 inch

Gender :

HDR

Total Number of Contacts :

2

UL Flammability Code :

94V-0

Operating Temperature :

-20°C ~ 70°C

Operating Temperature Min Deg. C :

-20C

Durability :

100 Cycles

Body Breadth :

0.574 inch

Mounting Type :

Board Edge, Through Hole, Right Angle

Max Operating Temperature :

70 °C

Subcategory :

Headers and Edge Type Connectors

Mixed Contacts :

No

Termination Method :

Solder

Operating Temp Range :

-20C to 70C

Manufacturer :

Molex

Contact Plating :

Gold Over Nickel

Termination Type :

Solder

IEC Conformance :

No

Termination :

Solder

Empty Shell :

No

Dielectric Withstanding Voltage :

2500VAC V

Glow Wire Compliant :

Non-Compliant

Reference Standard :

CSA,TUV,UL

Voltage Rating :

250V

Mounting Style :

Through Hole

Terminal Length :

0.136 inch

Current Rating :

30 A

Contact Finish Thickness :

30.0µin (0.76µm)

Contact Style :

BLADE PIN-SKT

Product Status :

Active

Product Length (mm) :

13.2(mm)

Plating :

Tin

Number of Contacts :

2(POS)
